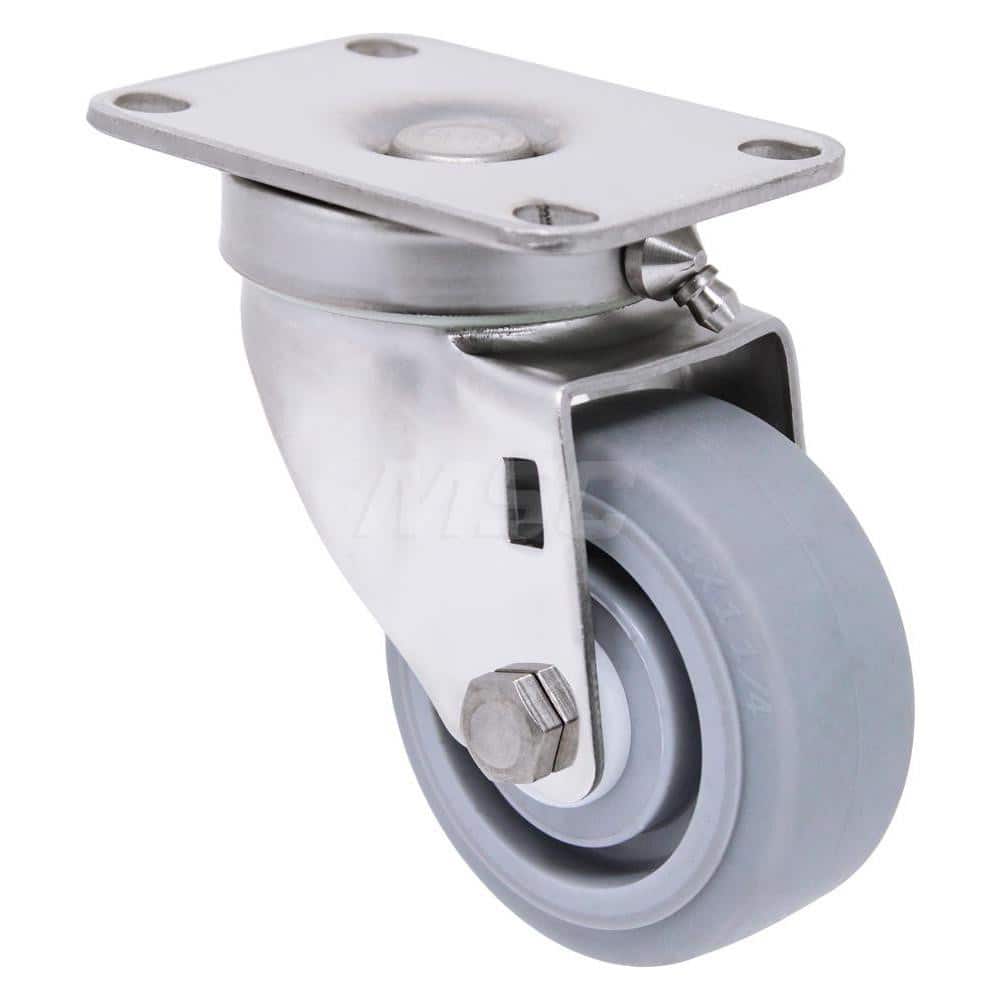

Top Plate Caster: Thermo Elastomer Rubber, 3″ Wheel Dia, 1-1/4″ Wheel Width, 300 lb Capacity, 4-3/16″ OAH 3.625″ Plate Length, 2.38″ Plate Width
Item #: 29102753
Brand: Durable Superior
Model #: 73NM30GI5A06YY
Product Specifications
| Wheel Diameter (Inch) | 3 |
| Load Capacity | 300 |
| Bearing Type | Delrin |
| Wheel Width | 1.25 |
| Wheel Width (Inch) | 1-1/4 |
| Frame Material | Stainless Steel |
| Wheel Diameter | 3 |
| Wheel Material | Thermo Elastomer Rubber |
| Tread Shape | Flat |
| Swivel Construction | Kingpin Swivel |
| Wheel Bearing Type | Sleeve |
| Wheel Bearing Material | Plastic |
| Wheel Color | Blue |
| Bearing Seal Type | Open |
| Attaching Bolt Size (Fractional Inch) | 5/16 |
| Plate Length (Inch) | 3.6250 |
| Inside Bolt Hole Spacing | 1-3/4 x 2-7/8 |
| Outside Bolt Hole Spacing | Slotted to 3" |
| Overall Height (Inch) | 4-3/16 |
| Overall Height (Decimal Inch) | 4.1875 |
| Plate Width/Diameter (Decimal Inch) | 2.3800 |
| Finish Coating | Polished Stainless |
| Bolt Hole Diameter | 0.3125 |
