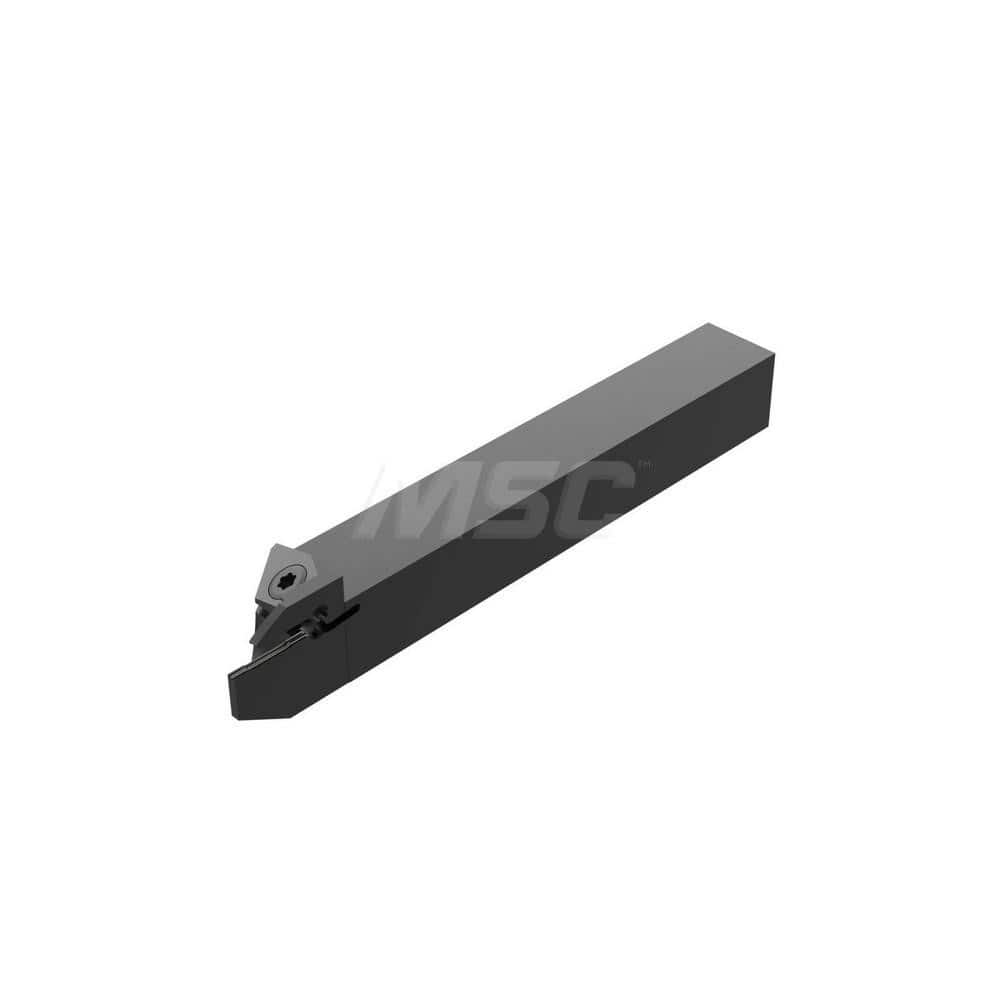

Indexable Grooving Toolholder: CFLR3244M-0635C, Uses LPGN1906.. Inserts, No
Item #: 29104387
Brand: Seco
Model #: 02464154
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 6 |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 29.10 |
| Minimum Groove Width (mm) | 6.35 |
| Toolholder Style | CFLR3244M-0635C |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | LPGN1906.. |
| Shank Width/Diameter (mm) | 44.00 |
| Shank Height (mm) | 32.00 |
| Series | CFL |
| Overall Length (mm) | 150.00 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Cut-Off; Threading |
| Head Length (mm) | 66.60 |
| Toolholder Material | Steel |
| Coolant Through | No |
