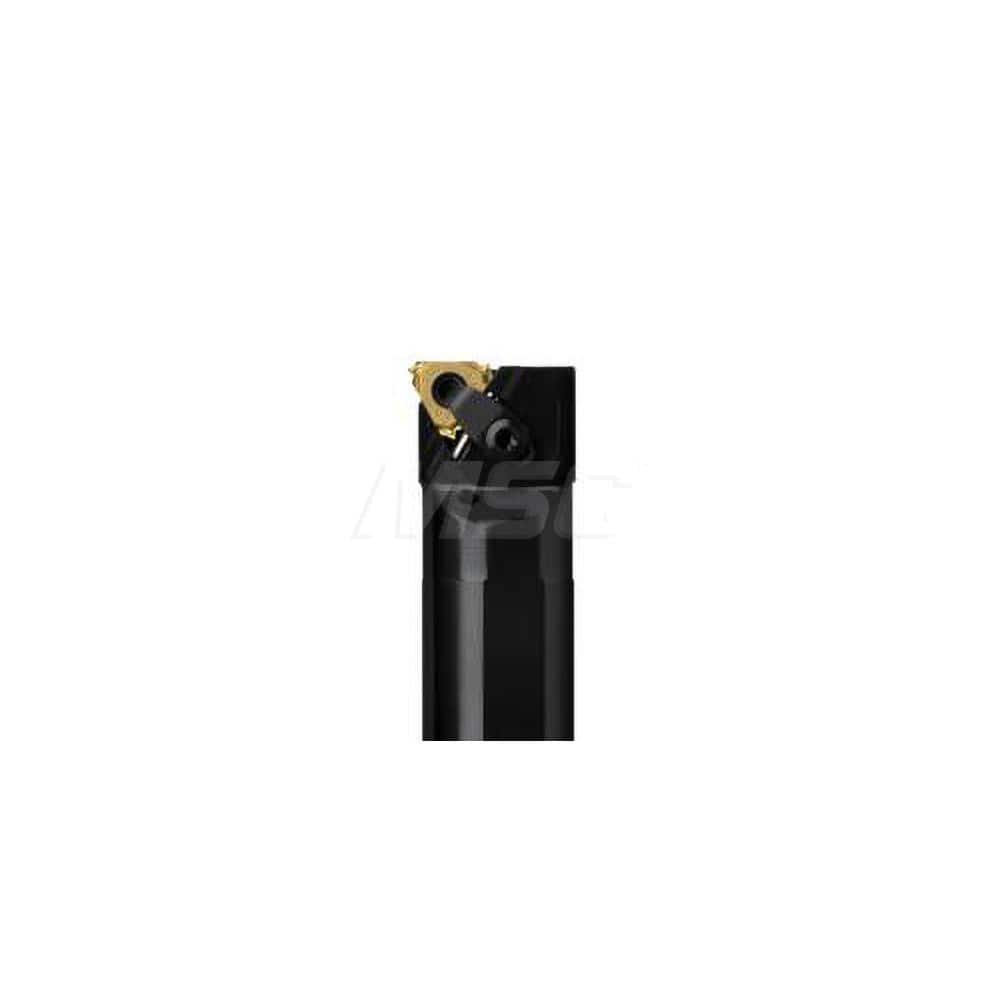

Indexable Threading Toolholder: Internal, Left Hand, 20 x 20 mm Shank Steel, Series CNL
Item #: 29105178
Brand: Seco
Model #: 02555907
Product Specifications
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | NR16 |
| Shank Width/Diameter (mm) | 20.00 |
| Toolholder Style | CNL |
| Coolant Entry Style Code | 1 - Axial Concentric Entry |
| Insert Holding Method | Clamp |
| Shank Height (mm) | 20.00 |
| Shank Length (mm) | 130.00 |
| Overall Length (mm) | 171.00 |
| Minimum Bore Diameter (mm) | 24.00 |
| Series | CNL |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (mm) | 41.00 |
| Back of Bar to Cutting Edge (mm) | 10.00 |
| Center to Cutting Edge (mm) | 11.80 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
