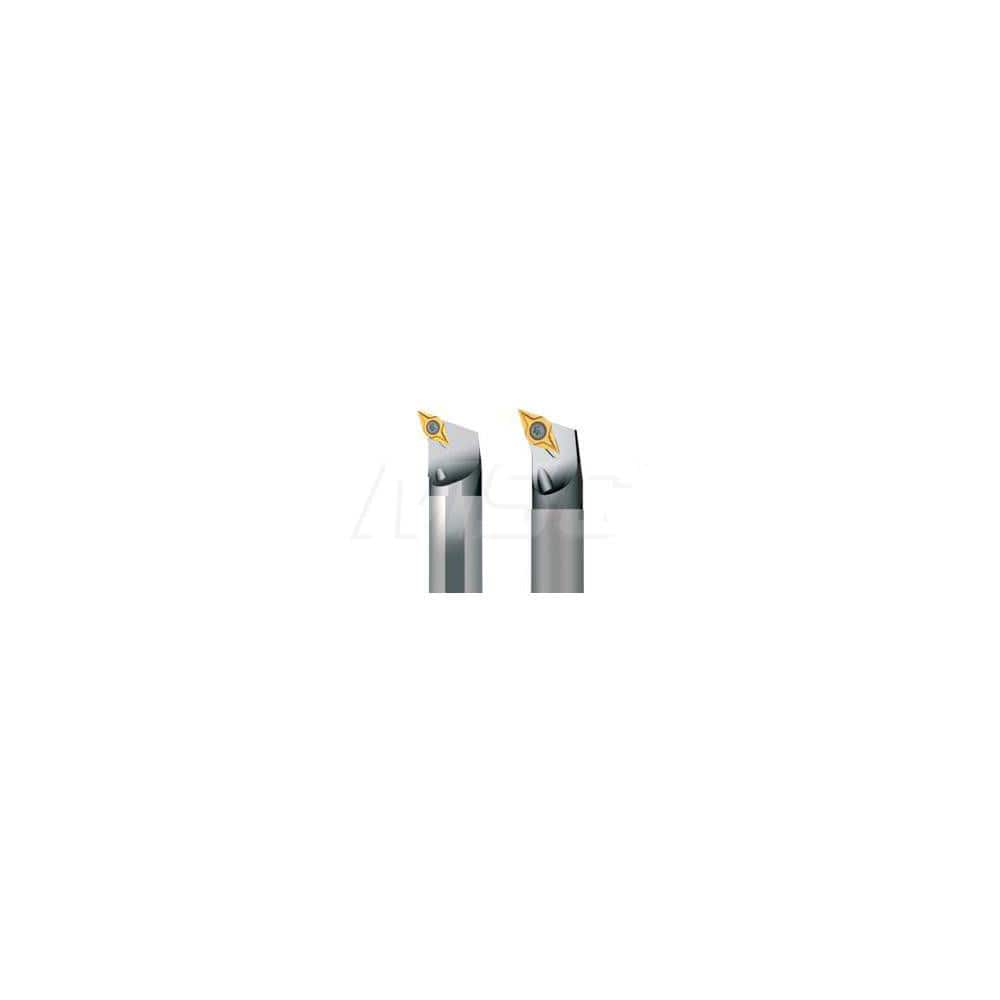

Indexable Boring Bar: A16Q-SDQCL07-R, 22.00 mm Min Bore, 16.00 mm Shank Dia, 107.50° N/A Steel 180.0000″ OAL, Screw,
Item #: 29105749
Brand: Seco
Model #: 00093838
Product Specifications
| Minimum Bore Diameter (mm) | 22.00 |
| Maximum Bore Depth (mm) | 22.00 |
| Toolholder Style | SDQC |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 16.0000 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Inch) | 16 |
| Overall Length (Decimal Inch) | 180.0000 |
| Overall Length (mm) | 180.00 |
| Overall Length (Inch) | 180 |
| Compatible Insert Size Code | DC..21.5.. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Neutral |
| Cutting Direction | Left Hand |
| Rake Angle | 0.00 |
| Lead Angle | 107.50 |
| Series | SDQC |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (mm) | 11.00 |
| Coolant Through | Yes |
