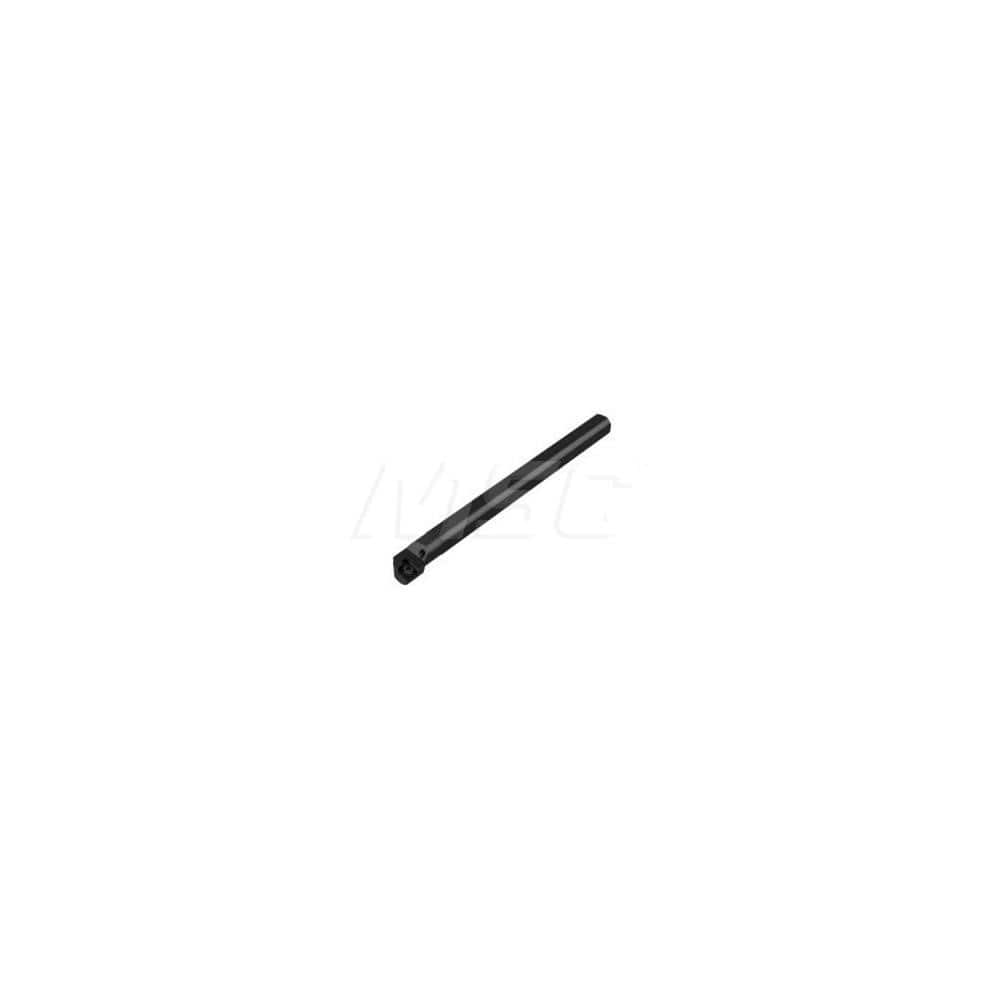

Indexable Boring Bar: A10-SCLCR-3, 95.00° N/A Steel 8.0000″ OAL, Screw,
Item #: 29106564
Brand: Seco
Model #: 02829682
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.8120 |
| Maximum Bore Depth (Decimal Inch) | 0.8120 |
| Toolholder Style | SCLC |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (mm) | 8.00 |
| Overall Length (Inch) | 8 |
| Compatible Insert Size Code | CC..32.5. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Neutral |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 95.00 |
| Series | SCLC |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.4060 |
| Coolant Through | Yes |
