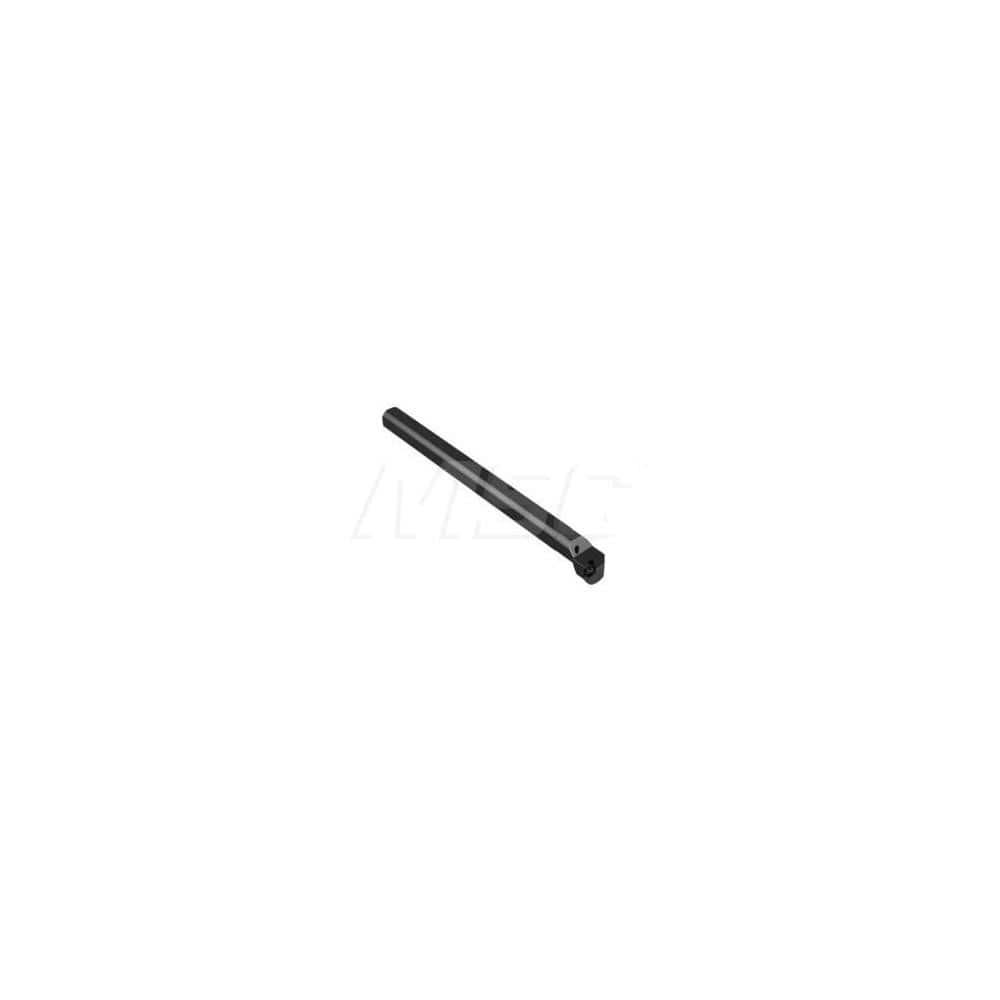

Indexable Boring Bar: A10-SDUCL-2, 93.00° N/A Steel 8.0000″ OAL, Screw,
Item #: 29106606
Brand: Seco
Model #: 02829684
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
| Minimum Bore Diameter (Inch) | 1/2 |
| Maximum Bore Depth (Decimal Inch) | 0.5000 |
| Maximum Bore Depth (Inch) | 1/2 |
| Toolholder Style | SDUC |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (mm) | 8.00 |
| Overall Length (Inch) | 8 |
| Compatible Insert Size Code | DC..21.5.. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Neutral |
| Cutting Direction | Left Hand |
| Rake Angle | 0.00 |
| Lead Angle | 93.00 |
| Series | SDUC |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Center to Cutting Edge (Inch) | 1/2 |
| Coolant Through | Yes |
