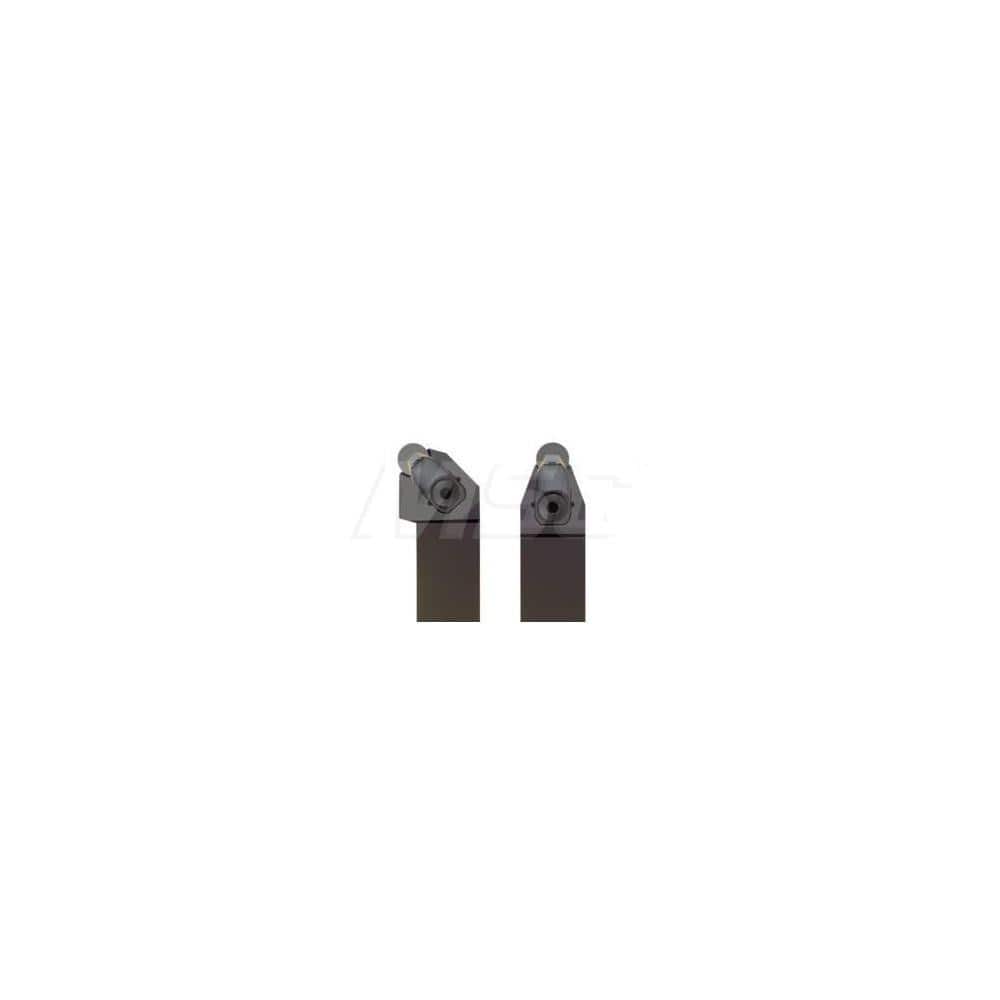

Indexable Turning Toolholders; Cutting Direction: Right Hand; Compatible Insert Size Code: RNGN45; Toolholder Style: CRSN; Rake: Negative; Rake Angle: -6; Multi-use Tool: Yes; Lead Angle: 0.0; Insert Holding Method: Clamp; Shank Width (mm): 25.00; Shank H
Item #: 29107315
Brand: Seco
Model #: 02926490
Product Specifications
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | RNGN45 |
| Toolholder Style | CRSN |
| Rake | Negative |
| Rake Angle | -6 |
| Multi-use Tool | Yes |
| Lead Angle | 0.0 |
| Insert Holding Method | Clamp |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 32.00 |
| Series | CRSNR3225P12C |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 170.0000 |
| Overall Length (Inch) | 170 |
| Cutting Tool Application | Chamfering; Facing; Turning |
| Head Length (mm) | 28.00 |
| Toolholder Material | Steel |
