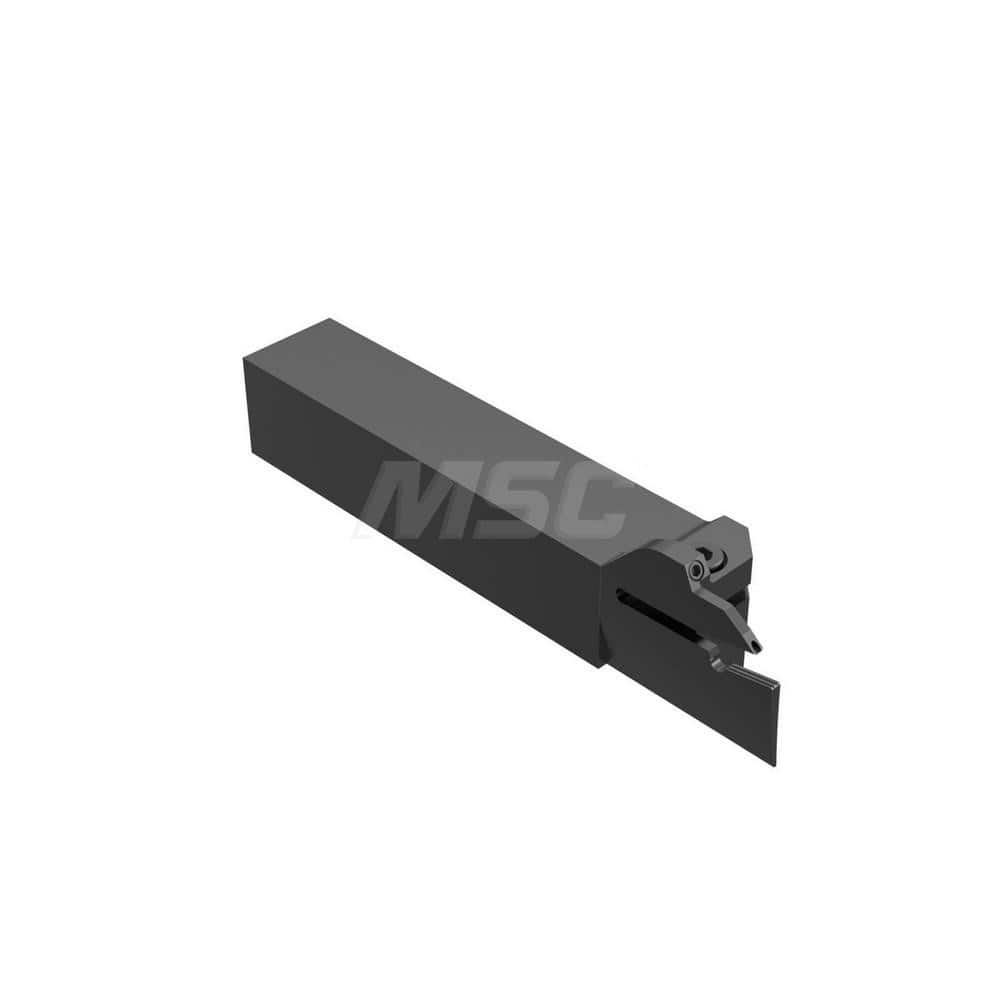

Indexable Grooving Toolholder: CFOL3244M-0317C, Uses LPGN1204.. Inserts, No
Item #: 29109048
Brand: Seco
Model #: 02927354
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 4 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 19.40 |
| Minimum Groove Width (mm) | 3.17 |
| Toolholder Style | CFOL3244M-0317C |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | LPGN1204.. |
| Shank Width/Diameter (mm) | 44.00 |
| Shank Height (mm) | 32.00 |
| Series | CFO |
| Overall Length (mm) | 150.00 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Cut-Off; Threading |
| Head Length (mm) | 56.40 |
| Toolholder Material | Steel |
| Coolant Through | No |
