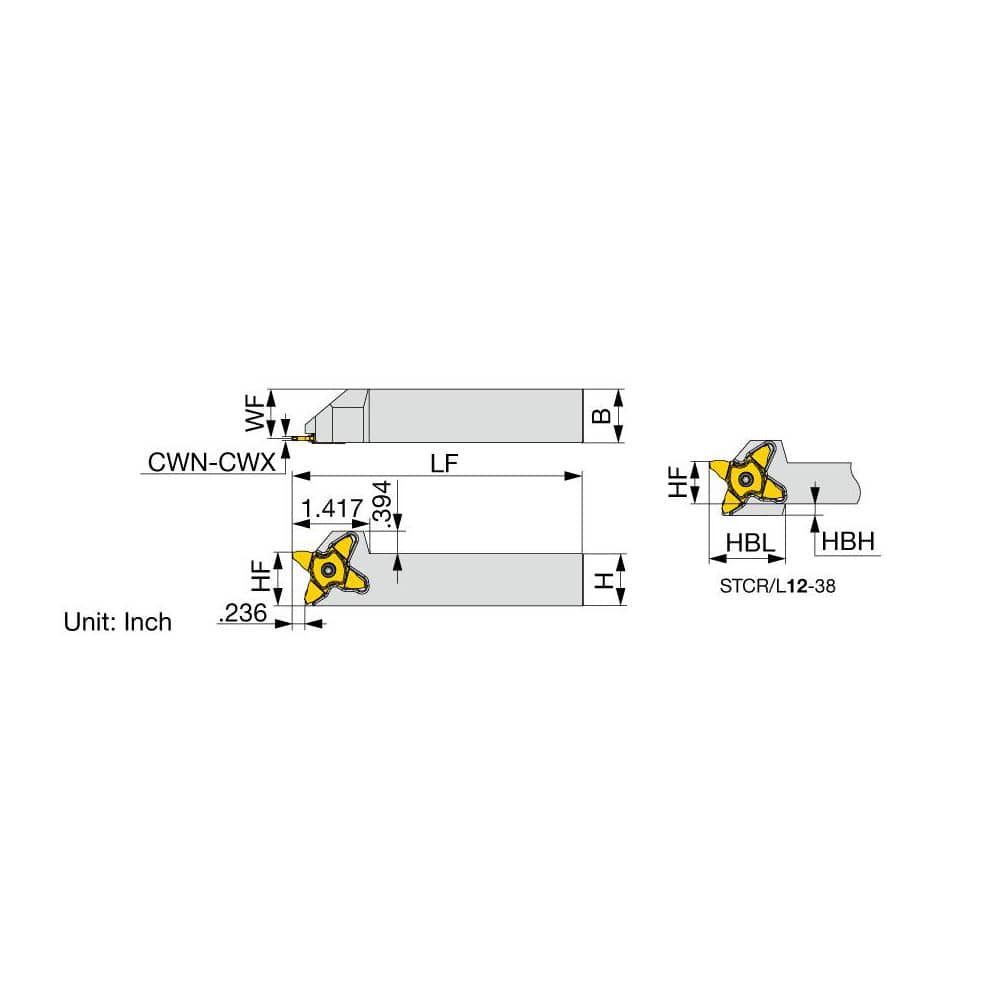

Indexable Grooving Toolholder: STCL16-38, 0.1575″ Max Groove Width 0.3937″ Max Depth, Uses 38 Inserts, 1.0000″ Shank Height, 1″ Shank Width, No
Item #: 29157047
Brand: Tungaloy
Model #: 6787762
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 38 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Minimum Groove Width (Decimal Inch) | 0.0590 |
| Toolholder Style | STC |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 38 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | STC |
| Shank Length (Decimal Inch) | 4.0830 |
| Overall Length (Inch) | 5-1/2 |
| Overall Length (Decimal Inch) | 5.5000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Cut-Off |
| Head Length (Decimal Inch) | 1.4170 |
| Toolholder Material | Steel |
| Coolant Through | No |
