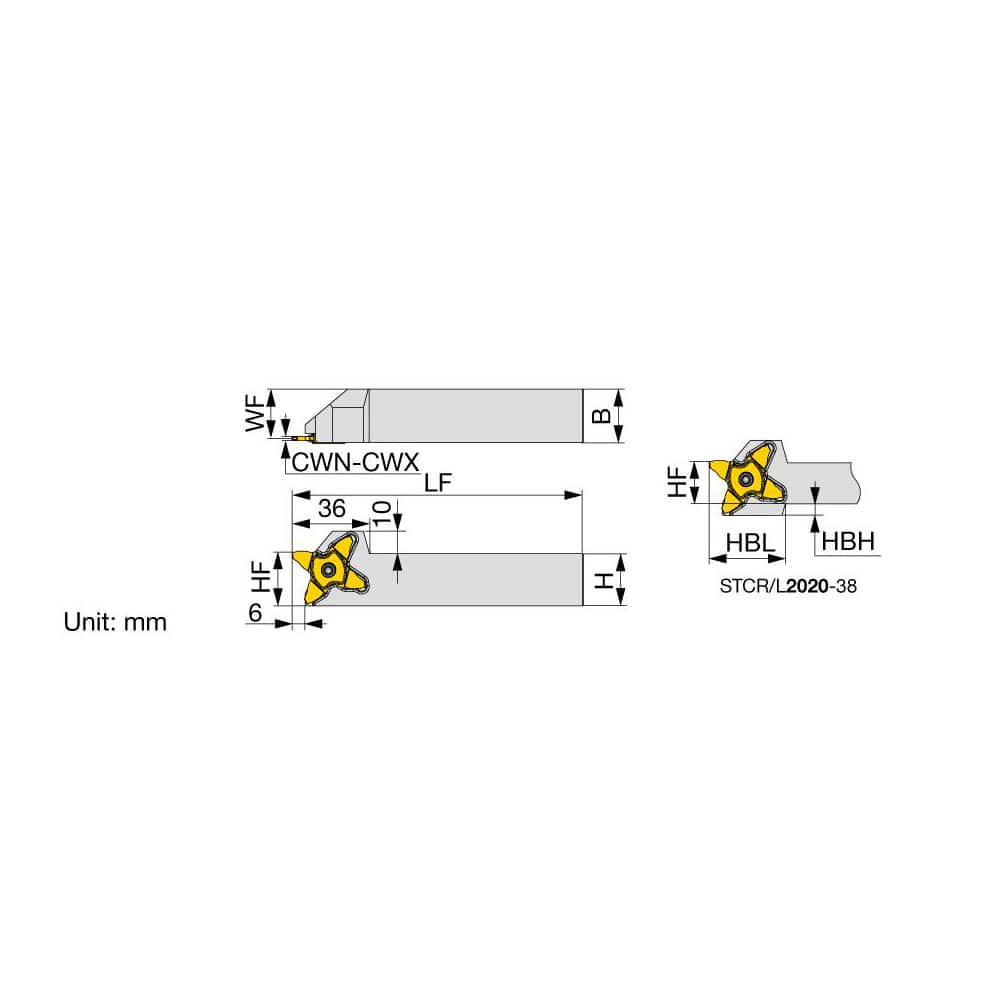

Indexable Grooving Toolholder: STCL2525-38, Uses 38 Inserts, No
Item #: 29160009
Brand: Tungaloy
Model #: 6784967
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 38 |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Minimum Groove Width (mm) | 1.50 |
| Maximum Groove Width (mm) | 4.00 |
| Toolholder Style | STC |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 38 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Series | STC |
| Shank Length (mm) | 99.00 |
| Overall Length (mm) | 135.00 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Cut-Off |
| Head Length (mm) | 36.00 |
| Toolholder Material | Steel |
| Coolant Through | No |
