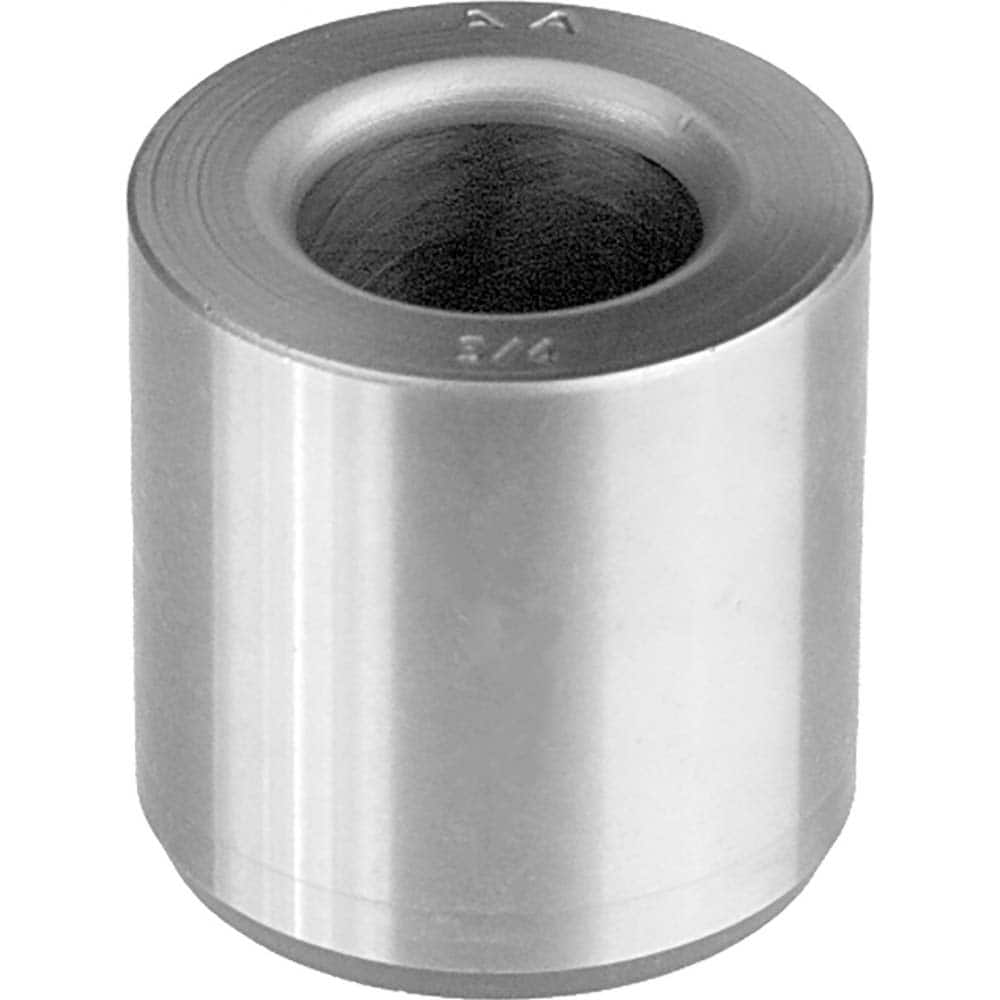

All American Bushing - Type PM, 23.5mm ID, Headless, Press-Fit Drill Bushing
Item #: 29200862
Brand: All American Bushing
Model #: PM35-20-23.5
Product Specifications
| Bushing Industry Code | PM |
| Inside Diameter (mm) | 23.5000 |
| Inside Diameter (Decimal Inch) | 0.9252 |
| Body Outside Diameter (mm) | 35 |
| Overall Bushing Length (mm) | 20 |
| Installation Method | Press-Fit |
| Head or Headless | Headless |
| Bushing Material | C1144 Steel |
| Counterbored | No |
| Inside Diameter Tolerance (Decimal Inch) | +0.007 to +0.020 |
