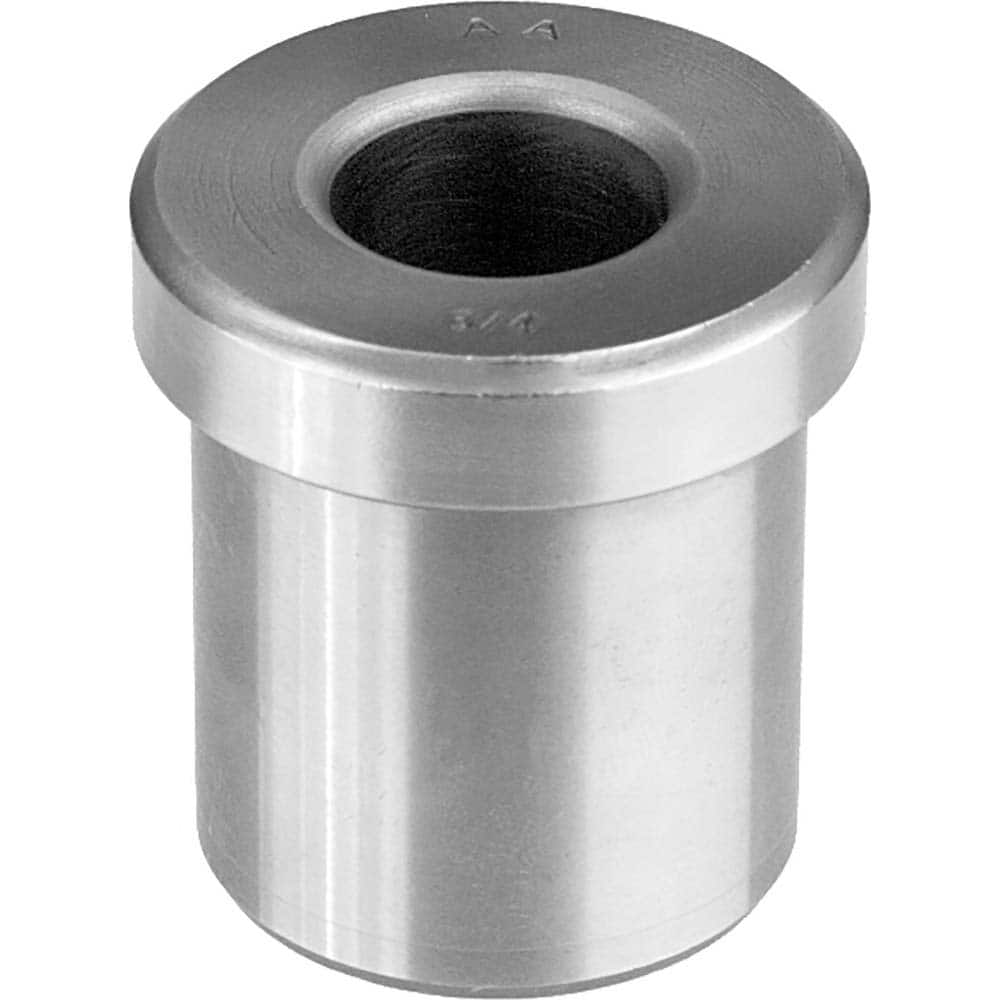

All American Bushing - Type HM, 21mm ID, Head, Press-Fit Drill Bushing
Item #: 29201027
Brand: All American Bushing
Model #: HM30-20-21
Product Specifications
| Bushing Industry Code | HM |
| Inside Diameter (mm) | 21.0000 |
| Inside Diameter (Decimal Inch) | 0.8268 |
| Body Outside Diameter (mm) | 30 |
| Overall Bushing Length (mm) | 20 |
| Length Under Head (mm) | 20.00 |
| Installation Method | Press-Fit |
| Head or Headless | Head |
| Head Outside Diameter (Inch) | 1-11/32 |
| Head Height (Inch) | 13/64 |
| Bushing Material | C1144 Steel |
| Counterbored | No |
| Inside Diameter Tolerance (Decimal Inch) | +0.0002 to .0006 |
