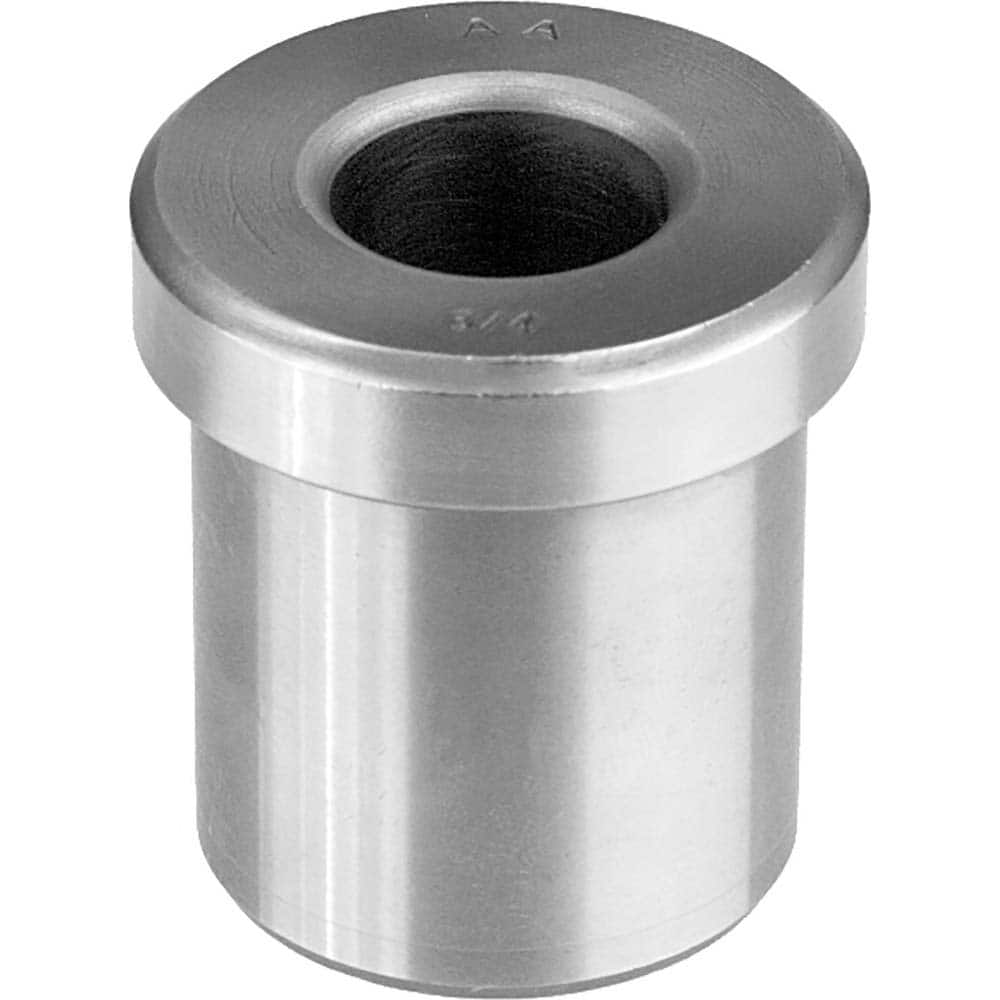

All American Bushing - Type H, 3/8" ID, Head, Press-Fit Drill Bushing
Item #: 29201035
Brand: All American Bushing
Model #: H40-8-3/8
Product Specifications
| Bushing Industry Code | H |
| Inside Diameter (Inch) | 3/8 |
| Body Outside Diameter (Inch) | 5/8 |
| Overall Bushing Length (Inch) | 23/32 |
| Length Under Head (Inch) | 1/2 |
| Installation Method | Press-Fit |
| Head or Headless | Head |
| Head Outside Diameter (Inch) | 51/64 |
| Head Height (Inch) | 7/32 |
| Bushing Material | C1144 Steel |
| Counterbored | No |
| Inside Diameter Tolerance (Decimal Inch) | +0.0001 to +0.0005 |
