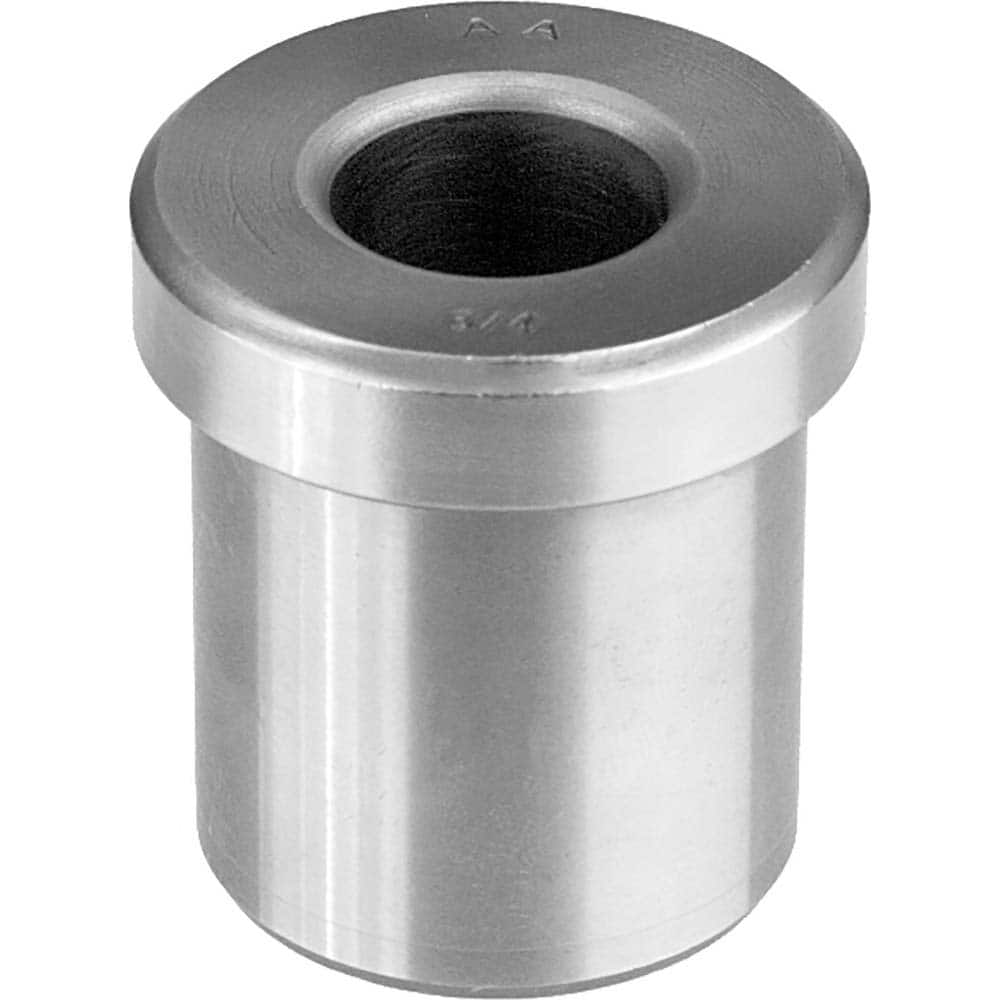

All American Bushing - Type H, #48 ID, Head, Press-Fit Drill Bushing
Item #: 29201175
Brand: All American Bushing
Model #: H13-6-#48
Product Specifications
| Bushing Industry Code | H |
| Inside Diameter (Wire) | #48 |
| Inside Diameter (Decimal Inch) | 0.0760 |
| Body Outside Diameter (Inch) | 13/64 |
| Overall Bushing Length (Inch) | 15/32 |
| Length Under Head (Inch) | 3/8 |
| Installation Method | Press-Fit |
| Head or Headless | Head |
| Head Outside Diameter (Inch) | 19/64 |
| Head Height (Inch) | 3/32 |
| Bushing Material | C1144 Steel |
| Counterbored | No |
| Inside Diameter Tolerance (Decimal Inch) | +0.0001 to +0.0004 |
