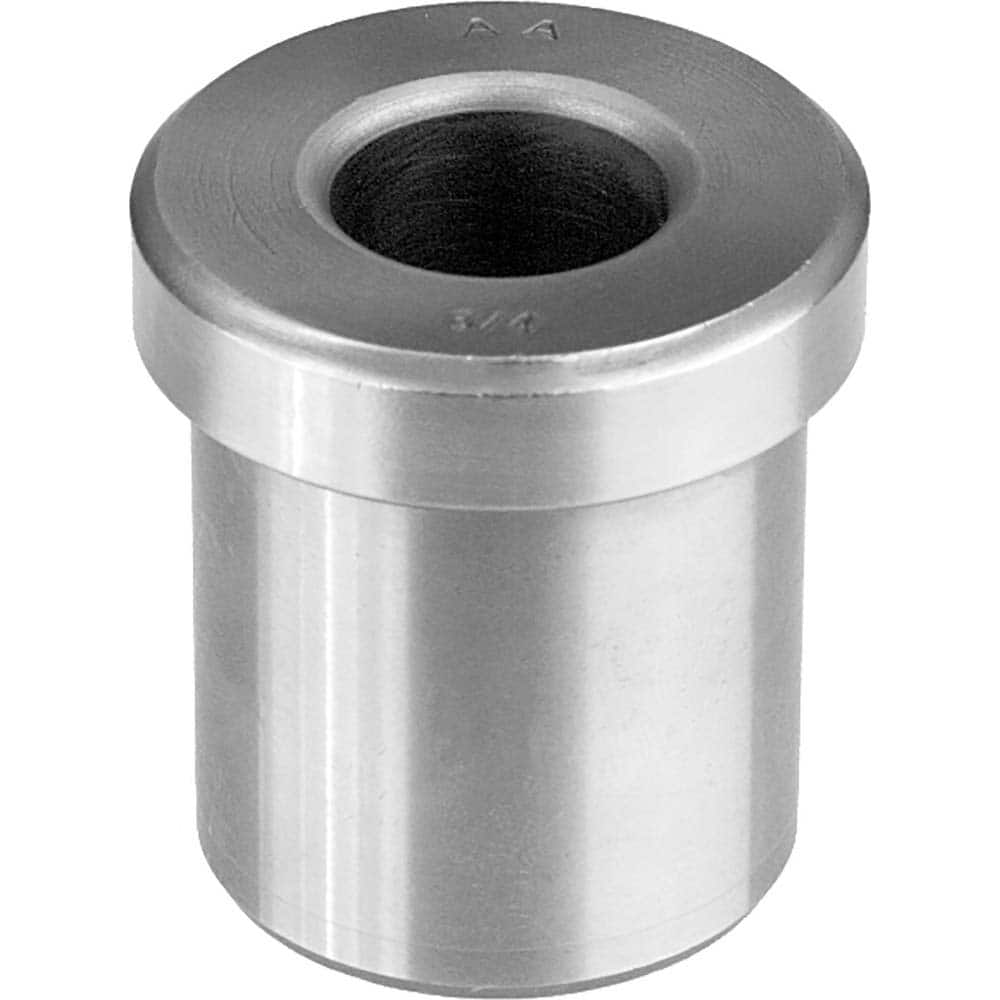

All American Bushing - Type H, 1/2" ID, Head, Press-Fit Drill Bushing
Item #: 29201977
Brand: All American Bushing
Model #: H48-6-1/2
Product Specifications
| Bushing Industry Code | H |
| Inside Diameter (Inch) | 1/2 |
| Body Outside Diameter (Inch) | 3/4 |
| Overall Bushing Length (Inch) | 19/32 |
| Length Under Head (Inch) | 3/8 |
| Installation Method | Press-Fit |
| Head or Headless | Head |
| Head Outside Diameter (Inch) | 59/64 |
| Head Height (Inch) | 7/32 |
| Bushing Material | C1144 Steel |
| Counterbored | No |
| Inside Diameter Tolerance (Decimal Inch) | +0.0002 to +0.0006 |
