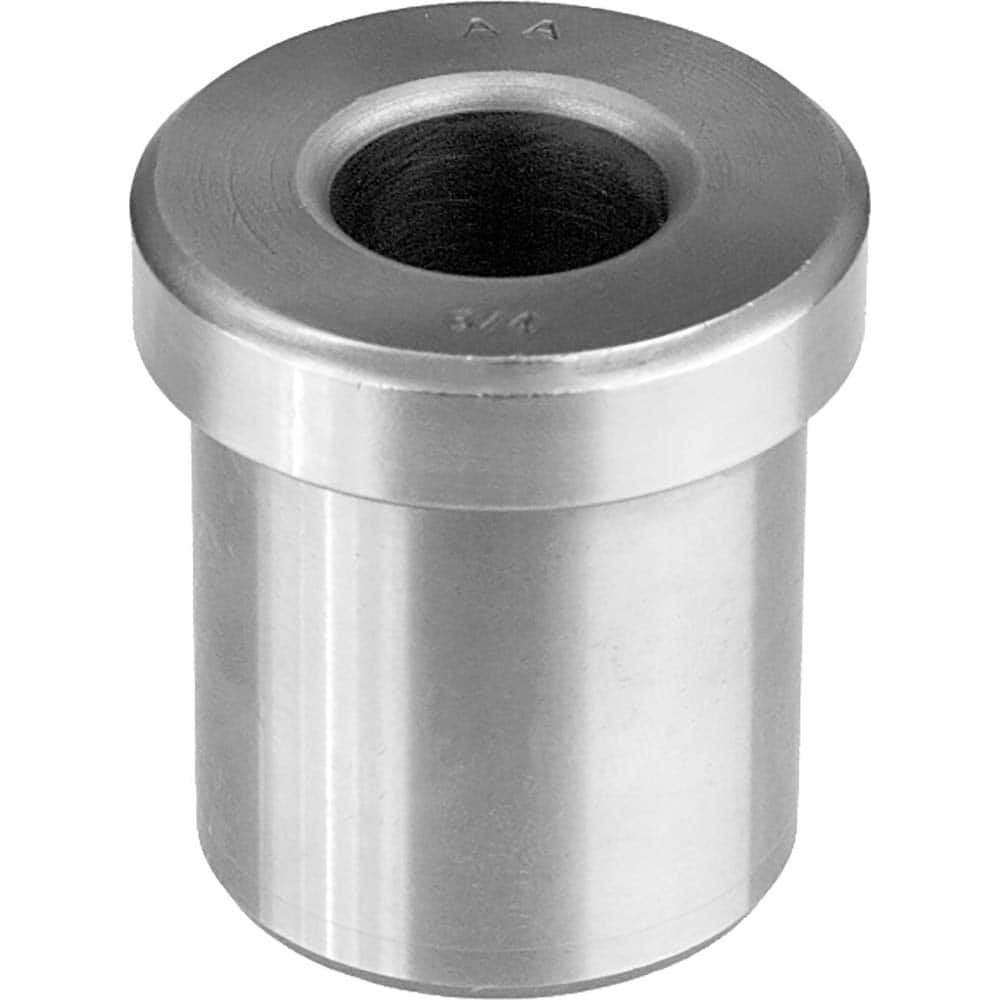

All American Bushing - Type HM, 10mm ID, Head, Press-Fit Drill Bushing
Item #: 29202199
Brand: All American Bushing
Model #: HM15-20-10
Product Specifications
| Bushing Industry Code | HM |
| Inside Diameter (mm) | 10.0000 |
| Inside Diameter (Decimal Inch) | 0.3937 |
| Body Outside Diameter (mm) | 15 |
| Overall Bushing Length (mm) | 20 |
| Length Under Head (mm) | 20.00 |
| Installation Method | Press-Fit |
| Head or Headless | Head |
| Head Outside Diameter (Inch) | 45/64 |
| Head Height (Inch) | 1/8 |
| Bushing Material | C1144 Steel |
| Counterbored | No |
| Inside Diameter Tolerance (Decimal Inch) | +0.0001 to +0.0005 |
