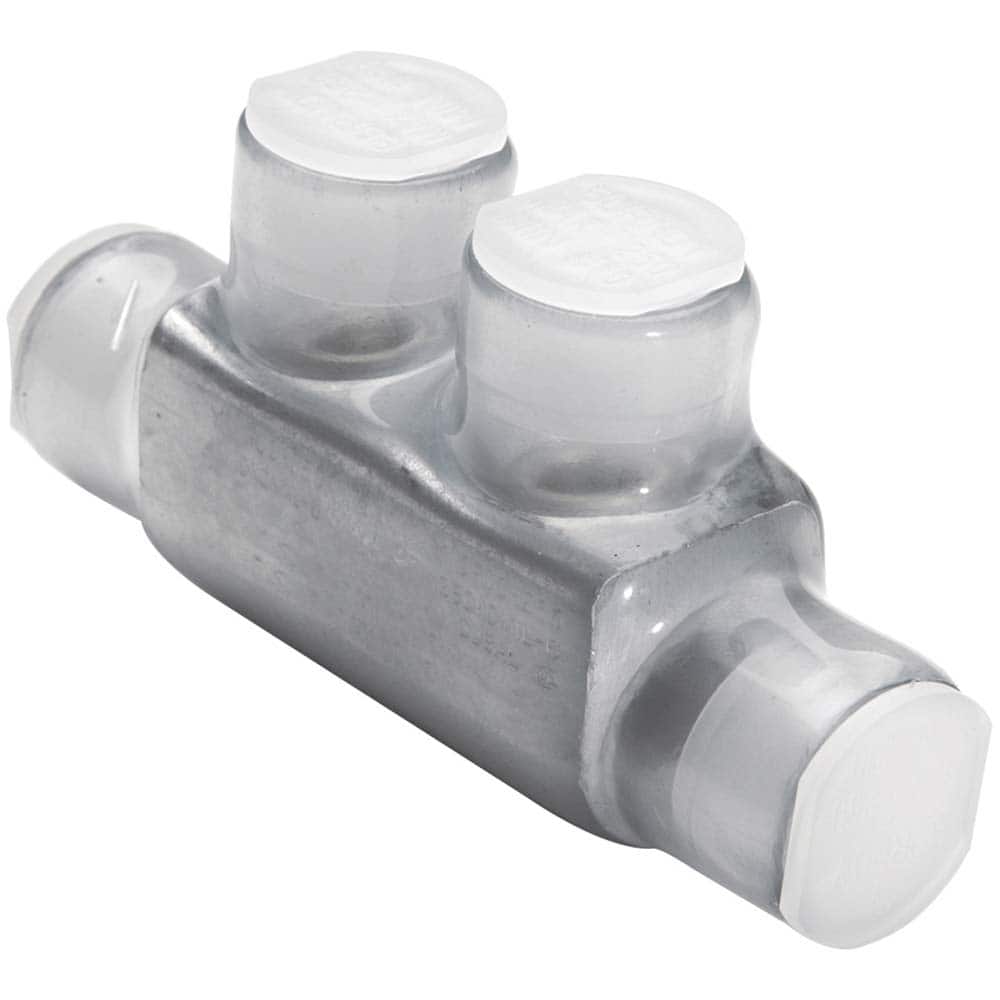

Burndy - Butt Splice Terminals; Insulation Type: Insulated ; Insulation Material: Plastisol ; Connection Type: Lug ; Compatible Wire Size (AWG): 14-1/0 ; Color: Clear ; Overall Length (mm): 73.914
Item #: 29227378
Brand: Burndy
Model #: BISR1/0
Product Specifications
Butt Splice Terminals; Insulation Type: Insulated ; Insulation Material: Plastisol ; Connection Type: Lug ; Compatible Wire Size (AWG): 14-1/0 ; Color: Clear ; Overall Length (mm): 73.914
| Insulation Type | Insulated |
| Insulation Material | Plastisol |
| Connection Type | Lug |
| Compatible Wire Size (AWG) | 14-1/0 |
| Color | Clear |
| Overall Length (mm) | 73.914 |
| Overall Length (Inch) | 2.91 |
| Overall Length (Decimal Inch) | 2.91 |
| Number of Wire Entries | 2 |
| Contact Material | Aluminum |
| Standards Met | CSA Certified; RoHS CM Compliant; UL 486A-486 |
| Additional Information | Sub Brand: UNITAP; Operating Voltage: 600 V; Temperature Rating: 190 deg F; Number of Screws: 2; Screw Type: Allen; Height: 1.38 in; Width: 0.91 in; Rated: Al/Cu Rated |
