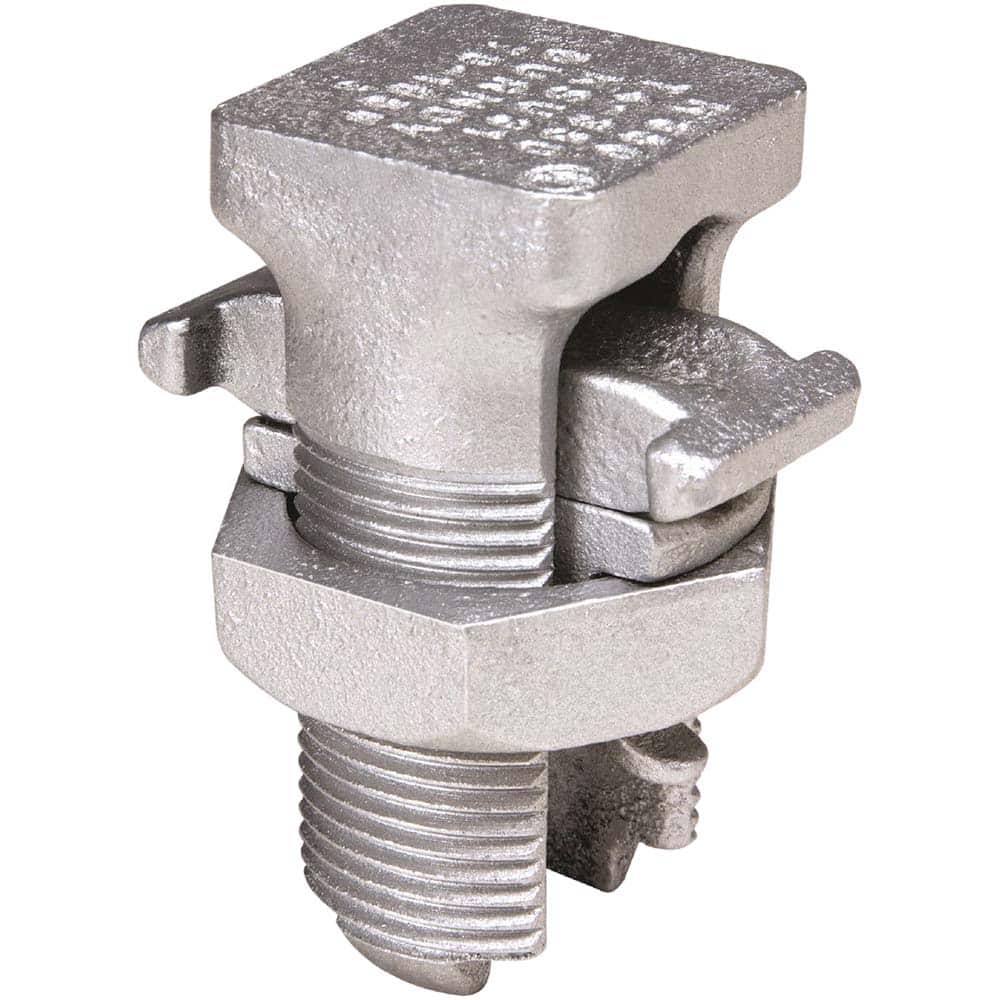

Burndy - Split Bolt Connectors; Connector Material: Copper ; Maximum Compatible Wire Size (AWG): 4/0 ; Maximum Compatible Wire Size (kcmil): 250 ; Minimum Compatible Wire Size (AWG): 1 (Strand) ; Minimum Compatible Wire Size (kcmil): 250 ; Pressure Bar M
Item #: 29228889
Brand: Burndy
Model #: KSU29
Product Specifications
Split Bolt Connectors; Connector Material: Copper ; Maximum Compatible Wire Size (AWG): 4/0 ; Maximum Compatible Wire Size (kcmil): 250 ; Minimum Compatible Wire Size (AWG): 1 (Strand) ; Minimum Compatible Wire Size (kcmil): 250 ; Pressure Bar Material: Copper Alloy
| Connector Material | Copper |
| Maximum Compatible Wire Size (AWG) | 4/0 |
| Maximum Compatible Wire Size (kcmil) | 250 |
| Minimum Compatible Wire Size (AWG) | 1 (Strand) |
| Minimum Compatible Wire Size (kcmil) | 250 |
| Pressure Bar Material | Copper Alloy |
| Compatible Wire Type | Aluminum; Copper |
| Head Width (Decimal Inch) | 1.22 |
| Head Width (Inch) | 1.22 |
| Overall Length (Decimal Inch) | 2.66 |
| Overall Length (Inch) | 2.66 |
| Head Shape | Square |
| Standards Met | RoHS EX Compliant; UL Listed |
