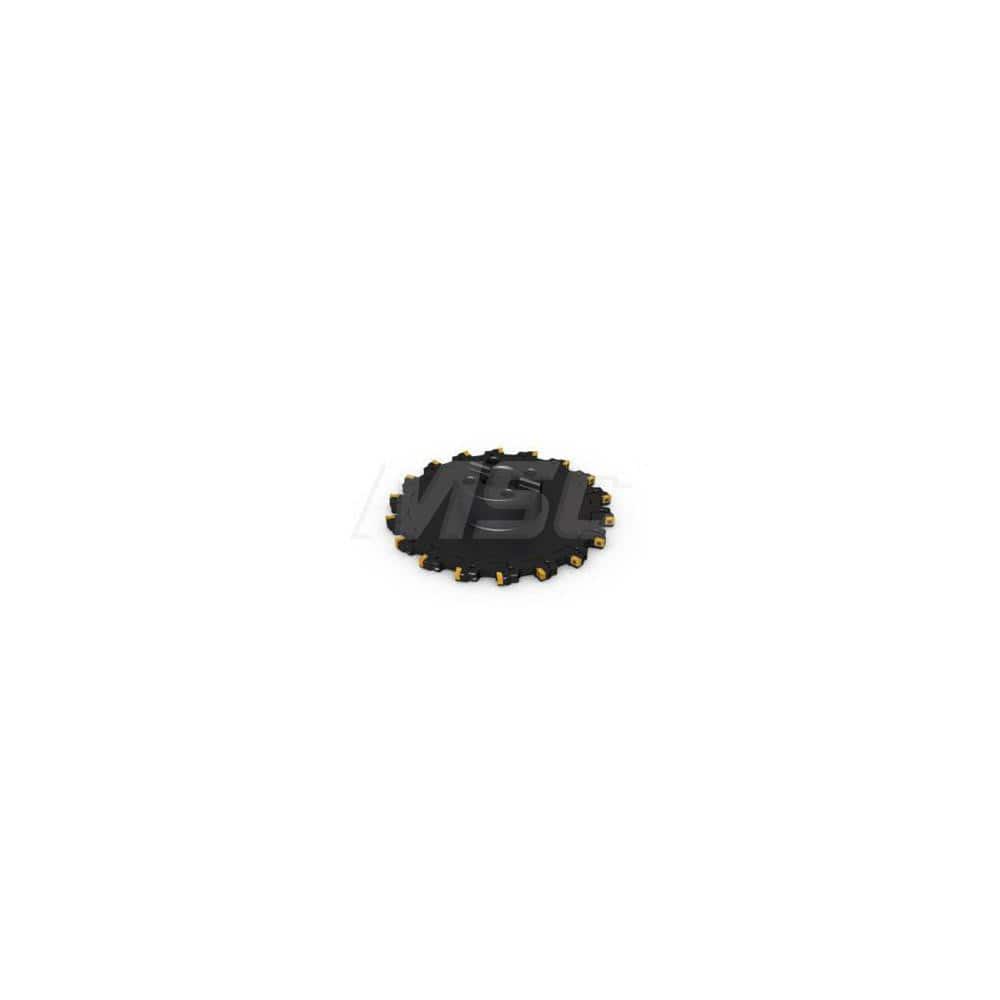

Indexable Slotting Cutter: 10 mm Cutting Width, 200 mm Cutter Dia, Arbor Hole Connection, 53.5 mm Depth of Cut, 40 mm Hole, Right Hand Cut Screw, Uses 14 LNK Inserts, 7 Teeth, Staggered, Positive, Steel, Black Oxide Finish
Item #: 29445848
Brand: Seco
Model #: 02723596
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 10.00 |
| Maximum Depth of Cut (mm) | 53.50 |
| Hole Diameter (Mm) ( - 0 Decimals) | 40.00 |
| Cutter Diameter (mm) | 200.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 14 |
| Compatible Insert Style | LNK |
| Compatible Insert Size Code | 504 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | R335.18 |
| Toolholder Style | R335.18 |
| Hub Diameter (mm) | 90.00 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 16.4000 |
| Maximum RPM | 6700 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 7 |
| Coolant Through | No |
| Coating/Finish | Black Oxide |
