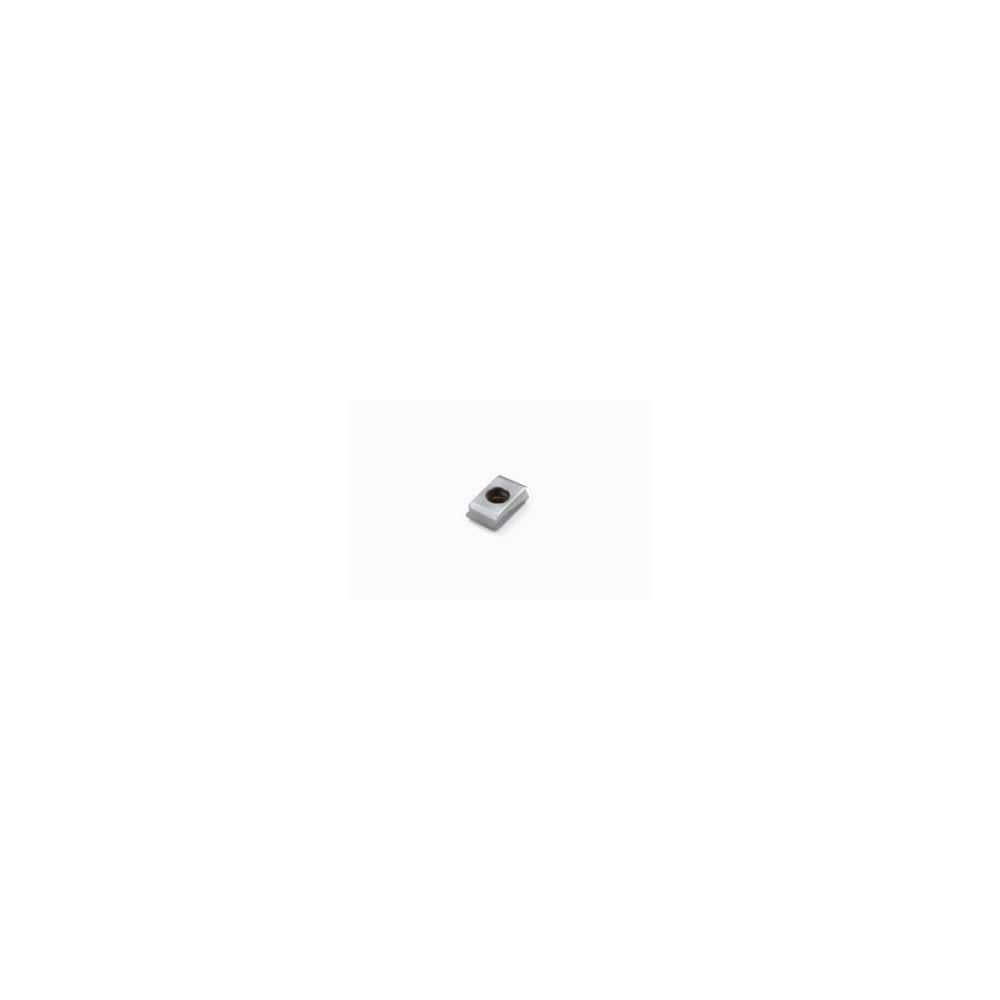

Indexable Drill Insert: LNEG1003EB45 RX1500, Cermet Coated, 90 ° Rectangle
Item #: 29448289
Brand: Seco
Model #: 02904277
Product Specifications
| Insert Style | LNEG |
| Insert Size Code | 1003 |
| Insert Material | Cermet |
| Manufacturer Grade | RX1500 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Cutting Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0000 |
| Chipbreaker | EB45 |
| Series | LNEG10 |
| Coating Process | PVD |
| Shape | Rectangle |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | LNEG1003-EB45-06 |
| Iso Code | LNEG1003-EB45-06 |
| Length (Decimal Inch - 4 Decimals) | 0.3900 |
| Included Angle Degree | 90.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1380 |
| Coating/Finish | Coated |
