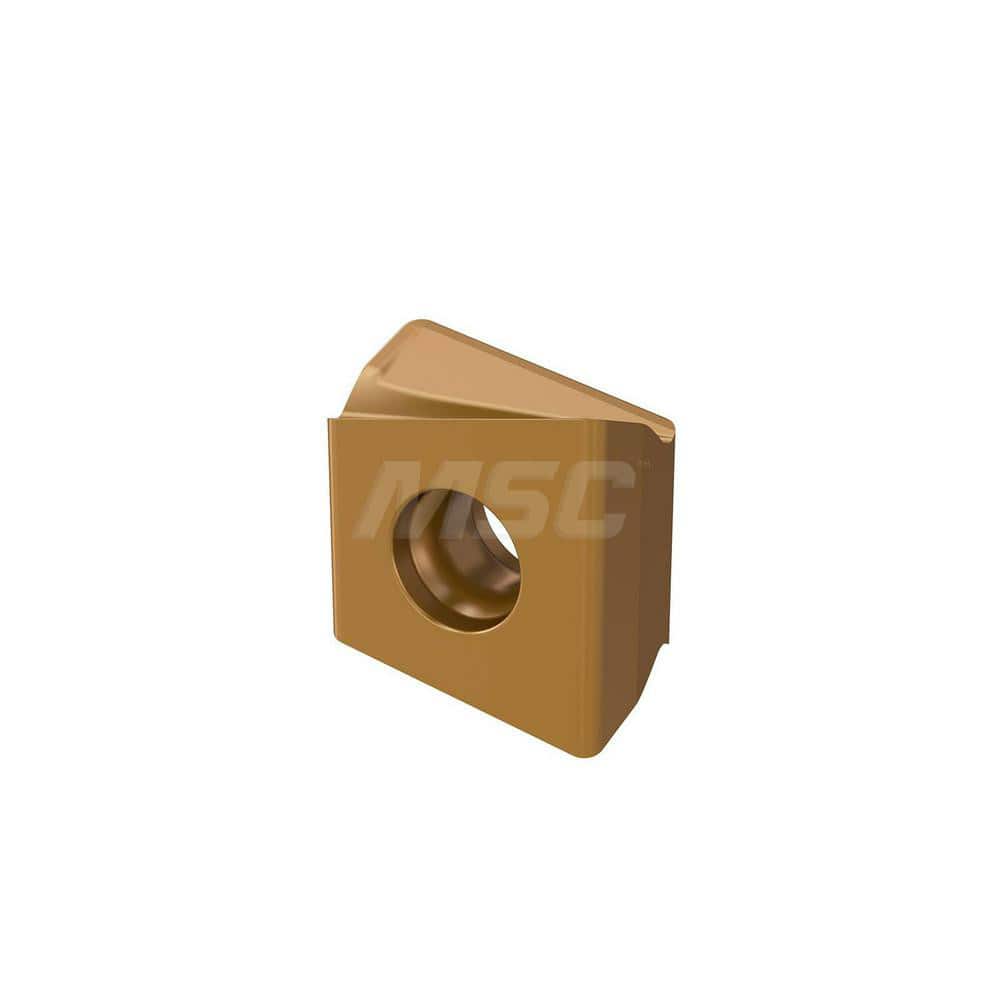

Item #: 29448453
Brand: Seco
Model #: 02989580
Product Specifications
| Insert Style | XNHQ |
| Insert Size Code | 120612 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | F40M |
| Inscribed Circle (Decimal Inch) | 0.2560 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | R335.25 |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4310 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4610 |
| Insert Shape | Irregular |
| Rake | Negative |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Aluminum; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | XNHQ120612TN4-M10 |
| Iso Code | XNHQ120612TN4-M10 |
| Chip Breaker | M10 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.5140 |
