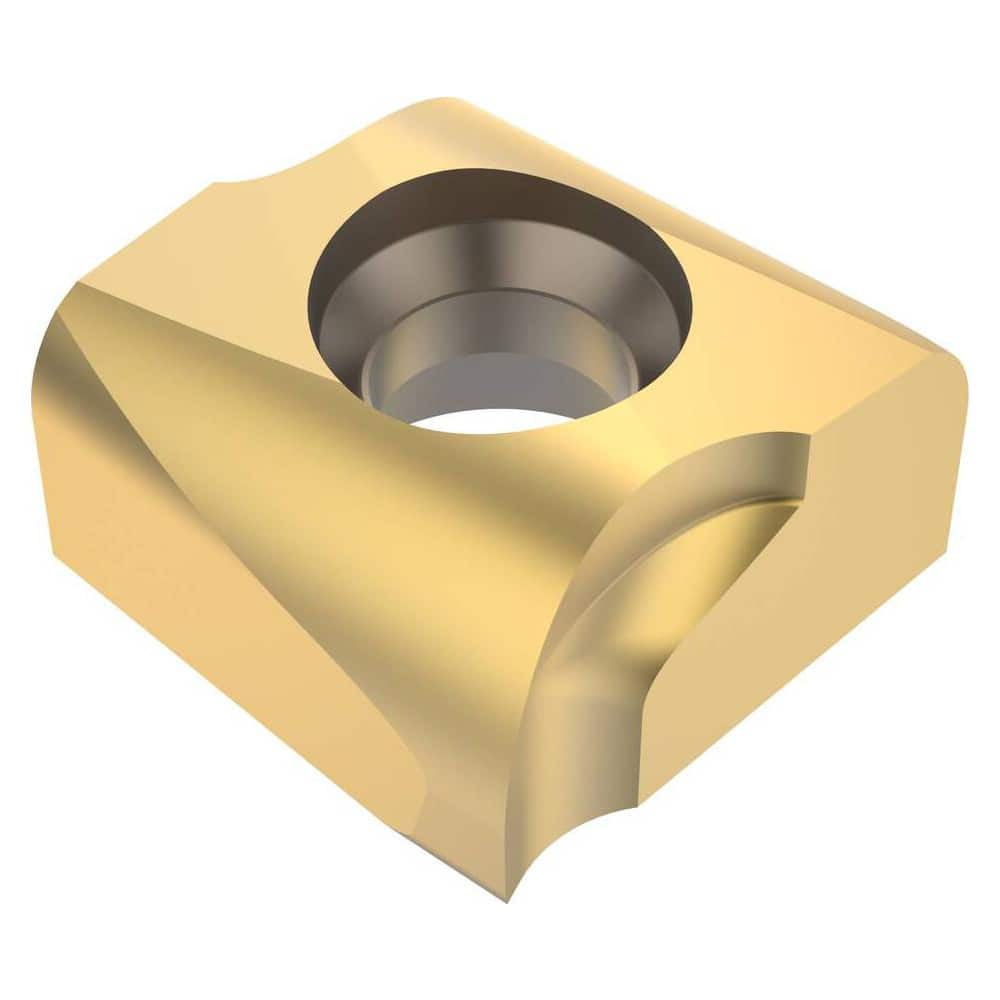

Item #: 29448651
Brand: Seco
Model #: 10022550
Product Specifications
| Insert Style | SNHQ |
| Insert Size Code | 120760 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | F40M |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.2362 |
| Insert Hand | Right Hand |
| Relief Angle | 0.00 |
| Series | R335.19 |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2720 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.2720 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Non-ISO |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Aluminum; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | SNHQ120760FER2-M07 |
| Iso Code | SNHQ120760FER2-M07 |
| Chip Breaker | M07 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2810 |
