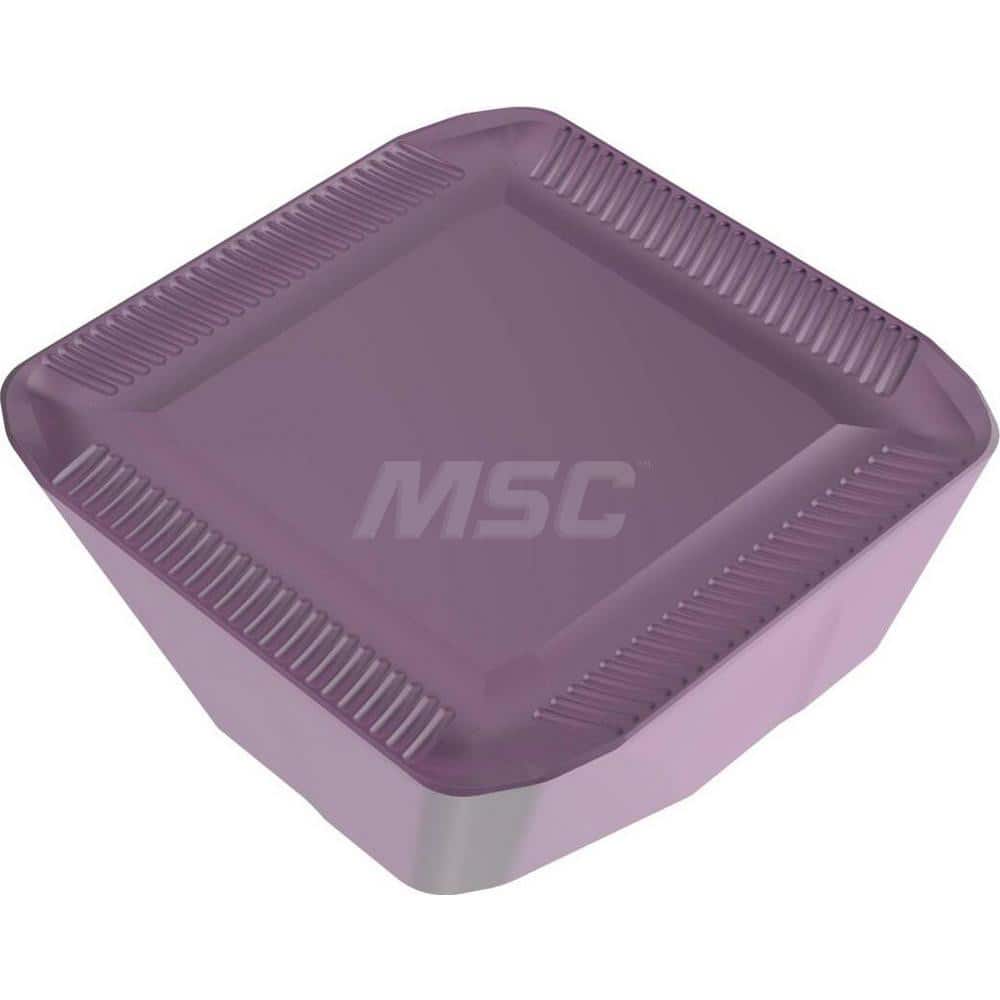

Item #: 29448719
Brand: Seco
Model #: 10027493
Product Specifications
| Insert Style | SPER |
| Insert Size Code | 1906 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | MP2050 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Insert Hand | Left Hand |
| Relief Angle | 11.00 |
| Series | R220.60 |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.5000 |
| Insert Shape | Square |
| Rake | Positive |
| Secondary Workpiece Material | Super-Alloys & Titanium |
| Secondary Workpiece Material Code | P; S; M |
| Ansi Code | SPER1906ZETL-M17 |
| Iso Code | SPER1906ZETL-M17 |
| Chip Breaker | M17 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
