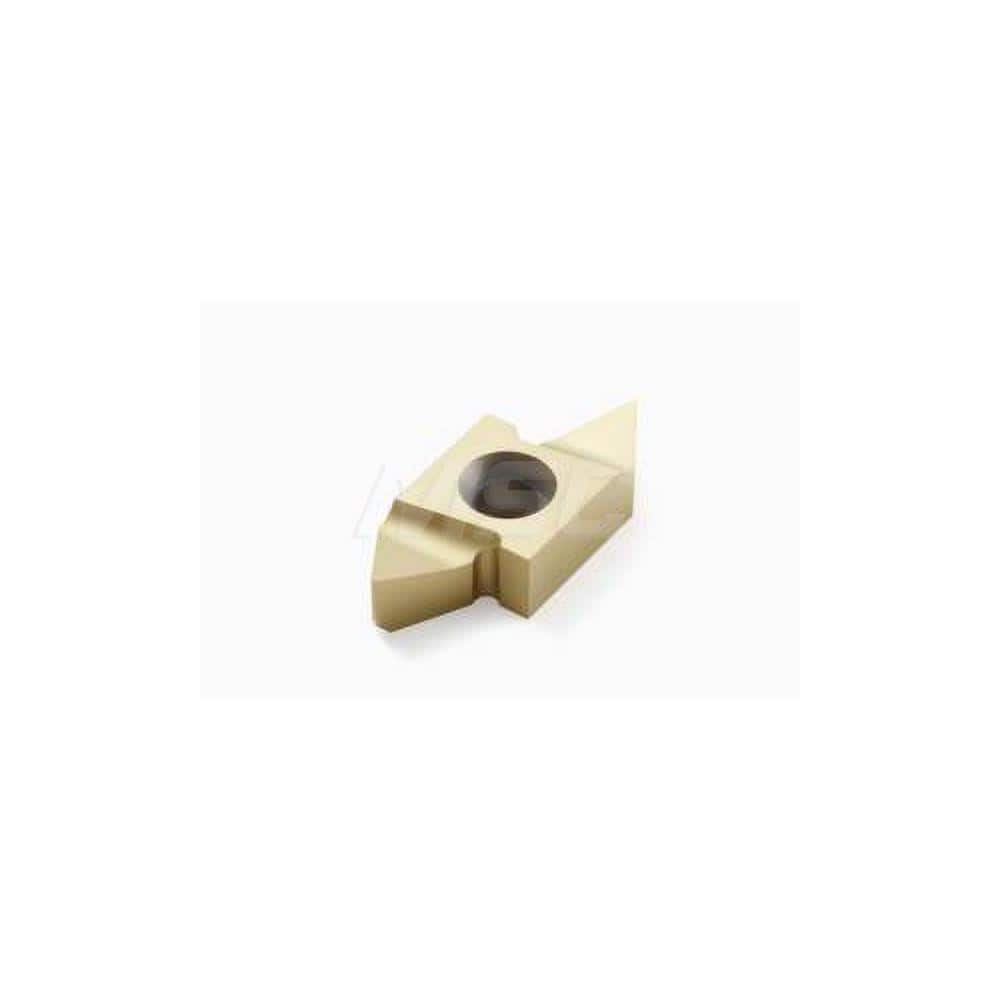

Laydown Threading Inserts; Insert Style: 26NR; Insert Size Code: K60; Insert Material: Solid Carbide; Manufacturer Grade: CP500; Threads Per Inch: 4.5; Thread Type: Internal; External; Insert Hand: Right Hand; Included Angle: 60; Chipbreaker: A; Series: S
Item #: 29449337
Brand: Seco
Model #: 00073164
Product Specifications
| Insert Style | 26NR |
| Insert Size Code | K60 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CP500 |
| Thread Type | Internal; External |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Chipbreaker | A |
| Series | Snap-Tap |
| Coating Process | PVD |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Rake | Positive |
| Primary Workpiece Material | Super Alloys; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Teeth Per Inch | 4.50 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3100 |
| Coating/Finish | Coated |
