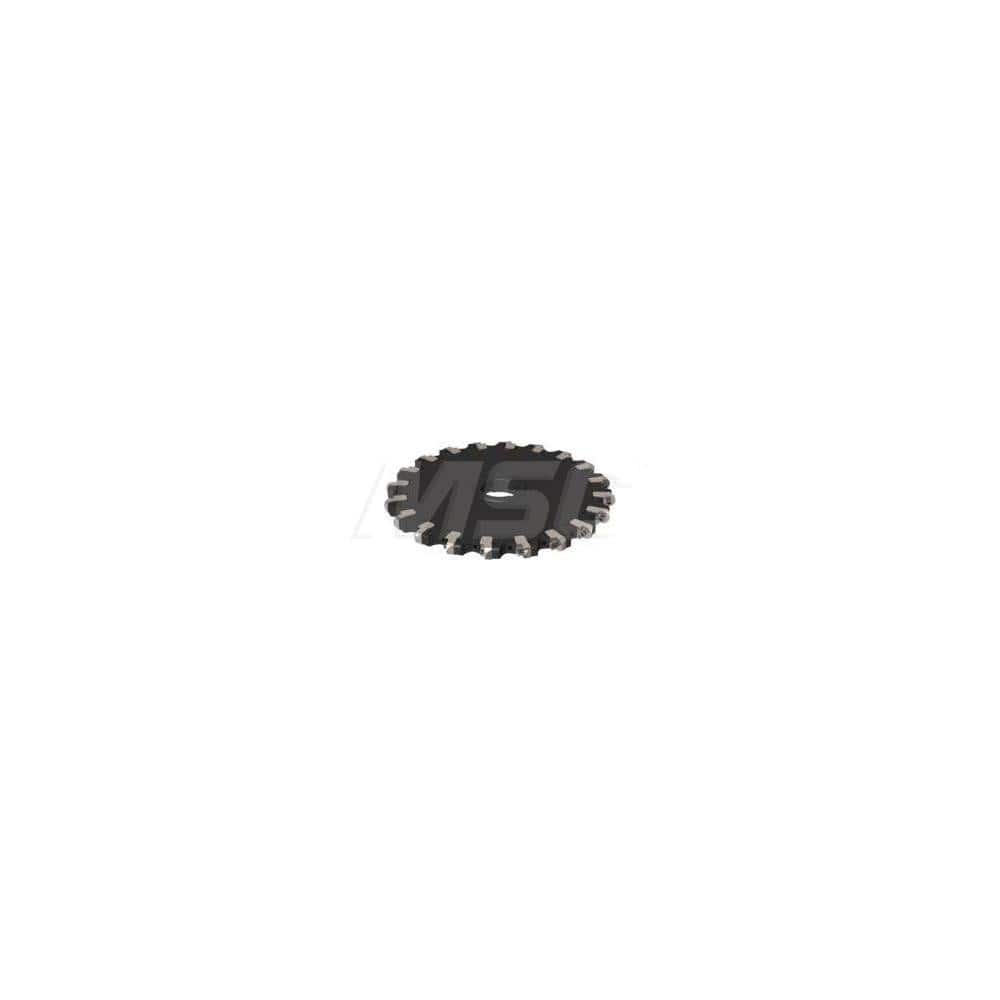

Indexable Slotting Cutter: 10 mm Cutting Width, 320 mm Cutter Dia, Arbor Hole Connection, 124.14 mm Depth of Cut, 50 mm Hole, Neutral Screw, Uses 20 RP Inserts, 20 Teeth, Straight, Positive, Steel, Ni Finish
Item #: 29451945
Brand: Seco
Model #: 02993780
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 10.00 |
| Maximum Depth of Cut (mm) | 124.14 |
| Hole Diameter (Mm) ( - 0 Decimals) | 50.00 |
| Cutter Diameter (mm) | 320.00 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 20 |
| Compatible Insert Style | RP |
| Compatible Insert Size Code | 2006 |
| Tooth Type | Straight |
| Rake | Positive |
| Tool Material | Steel |
| Series | 335.25 |
| Toolholder Style | 335.25 |
| Hub Diameter (mm) | 69.00 |
| Keyway Width (mm) | 12.00 |
| Keyway Width (Decimal Inch) | 12.0000 |
| Maximum RPM | 4100 |
| Tool Application | Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 20 |
| Coolant Through | No |
| Coating/Finish | Ni |
