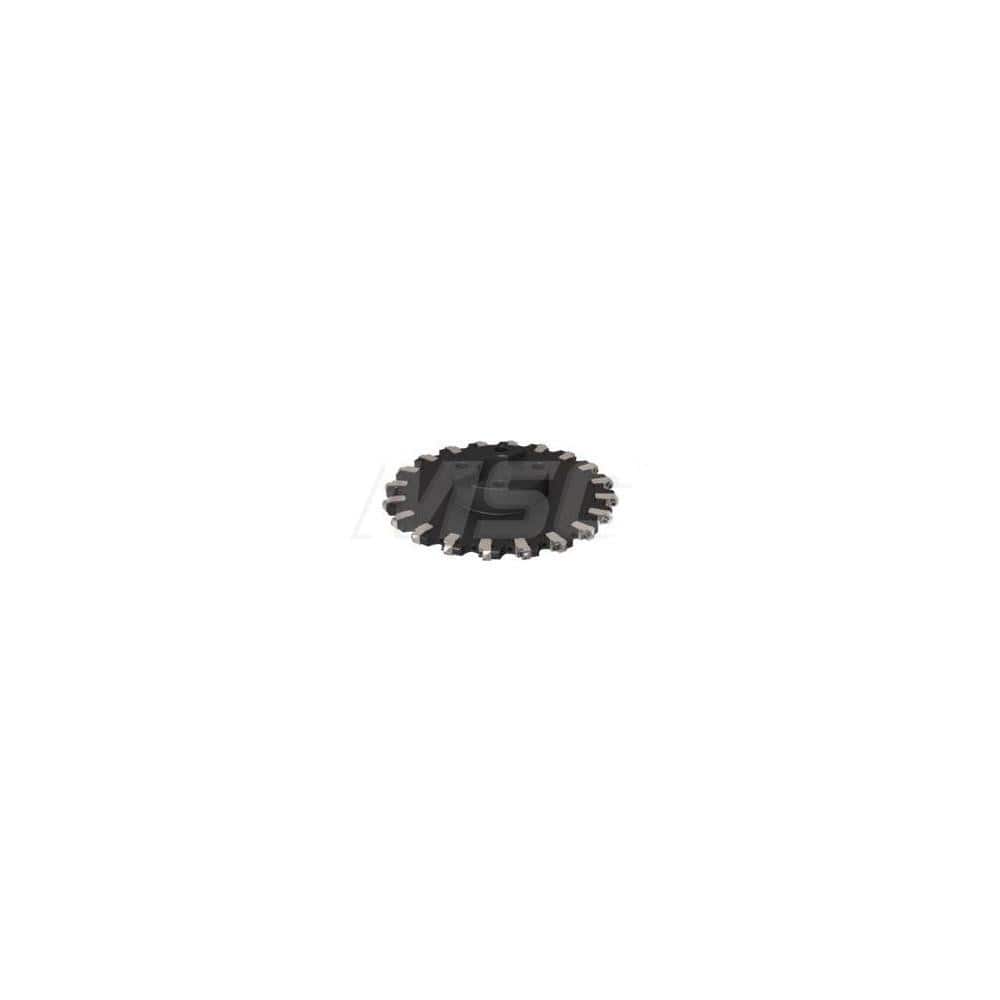

Indexable Slotting Cutter: 0.315'' Cutting Width, 12.197'' Cutter Dia, Arbor Hole Connection, 3.519'' Depth of Cut, 2.5'' Hole, Right Hand Cut Screw, Uses 20 RP Inserts, 20 Teeth, Straight, Positive, Steel, Ni Finish
Item #: 29453172
Brand: Seco
Model #: 02993967
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (Decimal Inch) | 3.5190 |
| Hole Diameter (Inch) | 2-1/2 |
| Hole Diameter (Decimal Inch) | 2.5000 |
| Cutter Diameter (Decimal Inch) | 12.1970 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 20 |
| Compatible Insert Style | RP |
| Compatible Insert Size Code | 1605 |
| Tooth Type | Straight |
| Rake | Positive |
| Tool Material | Steel |
| Series | R335.25 |
| Toolholder Style | R335.25 |
| Hub Diameter (Decimal Inch) | 5.1200 |
| Hub Diameter (mm) | 5.12 |
| Keyway Width (mm) | 1.01 |
| Keyway Width (Decimal Inch) | 1.1200 |
| Maximum RPM | 5200 |
| Tool Application | Shouldering |
| Tool Performance | High Performance |
| Number Of Teeth | 20 |
| Coolant Through | No |
| Coating/Finish | Ni |
