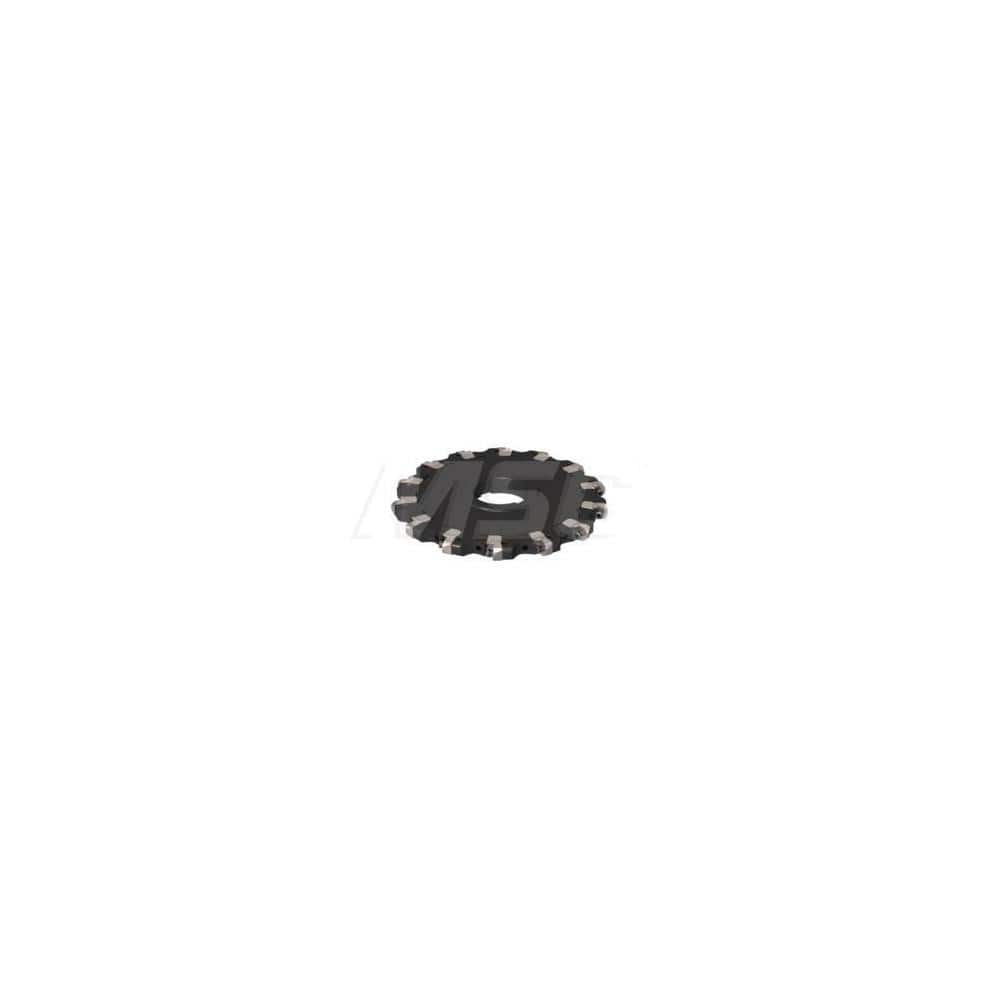

Indexable Slotting Cutter: 0.315'' Cutting Width, 8.197'' Cutter Dia, Arbor Hole Connection, 2.539'' Depth of Cut, 2'' Hole, Right Hand Cut Screw, Uses 14 RP Inserts, 14 Teeth, Straight, Positive, Steel, Ni Finish
Item #: 29453289
Brand: Seco
Model #: 02993976
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (Decimal Inch) | 2.5390 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Cutter Diameter (Decimal Inch) | 8.1970 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 14 |
| Compatible Insert Style | RP |
| Compatible Insert Size Code | 1605 |
| Tooth Type | Straight |
| Rake | Positive |
| Tool Material | Steel |
| Series | 335.25 |
| Toolholder Style | 335.25 |
| Hub Diameter (Decimal Inch) | 3.0000 |
| Hub Diameter (mm) | 3.00 |
| Hub Diameter (Inch) | 3 |
| Keyway Width (mm) | 0.50 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Maximum RPM | 6500 |
| Tool Application | Shouldering |
| Tool Performance | High Performance |
| Number Of Teeth | 14 |
| Coolant Through | No |
| Coating/Finish | Ni |
