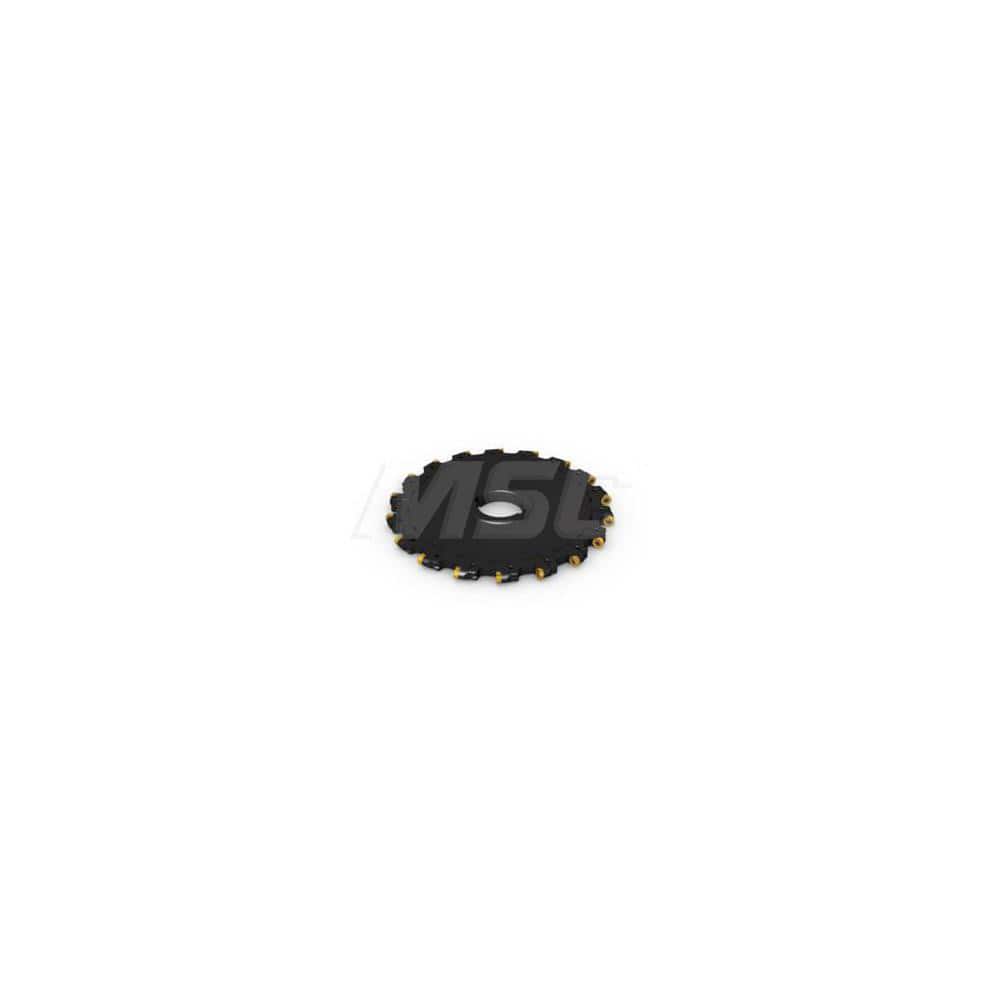

Indexable Slotting Cutter: 0.394'' Cutting Width, 12'' Cutter Dia, Arbor Hole Connection, 4.39'' Depth of Cut, 2'' Hole, Neutral Screw, Uses 22 RD Inserts, 11 Teeth, Staggered, Positive, Steel, Black Oxide Finish
Item #: 29453420
Brand: Seco
Model #: 02741639
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3940 |
| Maximum Depth of Cut (Decimal Inch) | 4.3900 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Cutter Diameter (Decimal Inch) | 12.0000 |
| Cutter Diameter (Inch) | 12 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 22 |
| Compatible Insert Style | RD |
| Compatible Insert Size Code | 0803 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | 335.18 |
| Toolholder Style | 335.18 |
| Hub Diameter (Decimal Inch) | 3.0000 |
| Hub Diameter (mm) | 3.00 |
| Hub Diameter (Inch) | 3 |
| Keyway Width (mm) | 0.50 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Maximum RPM | 5300 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 11 |
| Coolant Through | No |
| Coating/Finish | Black Oxide |
