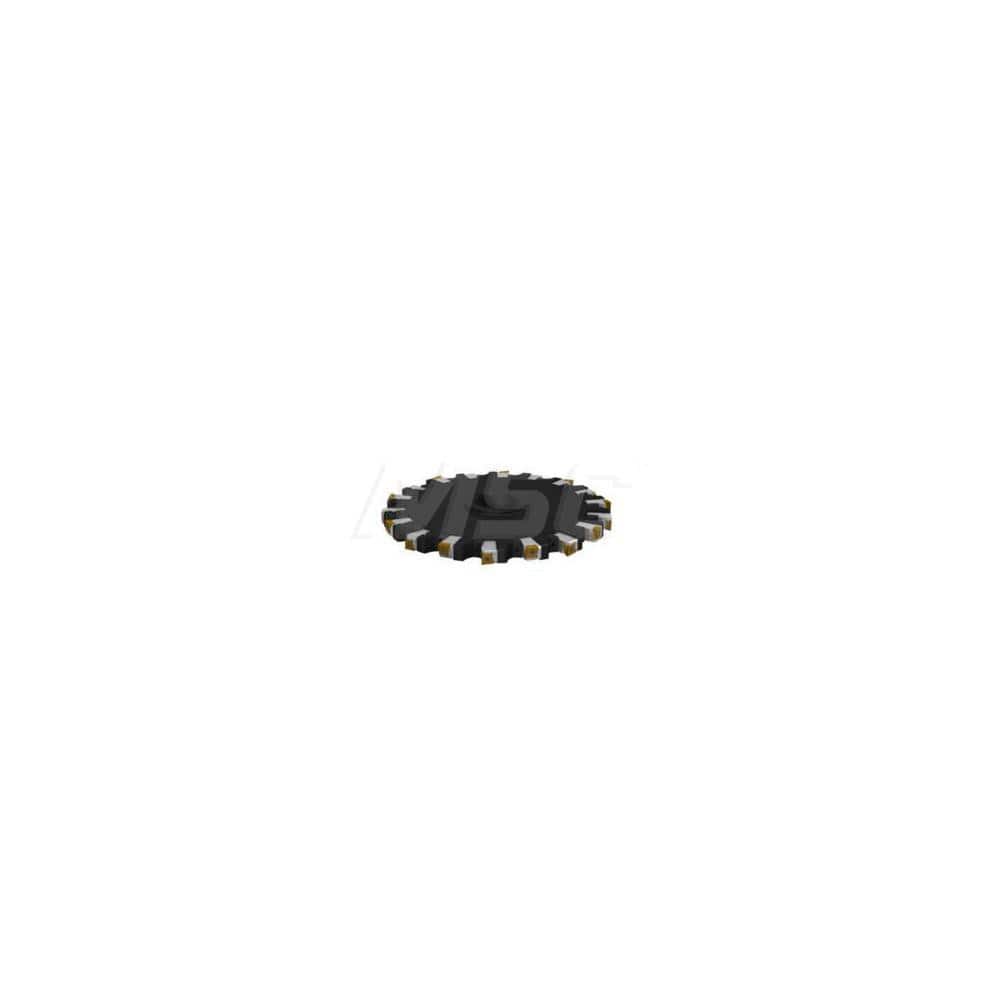

Indexable Slotting Cutter: 26 mm Cutting Width, 315 mm Cutter Dia, Arbor Hole Connection, 113.3 mm Depth of Cut, 60 mm Hole, Right Hand Cut Screw, Uses 18 XNHQ Inserts, 9 Teeth, Staggered, Positive, Steel, Ni Finish
Item #: 29453552
Brand: Seco
Model #: 02814616
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 26.00 |
| Maximum Depth of Cut (mm) | 113.30 |
| Hole Diameter (Mm) ( - 0 Decimals) | 60.00 |
| Cutter Diameter (mm) | 315.00 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 18 |
| Compatible Insert Style | XNHQ |
| Compatible Insert Size Code | 1407 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | 335.25 |
| Toolholder Style | 335.25 |
| Hub Diameter (mm) | 84.00 |
| Keyway Width (mm) | 14.00 |
| Keyway Width (Decimal Inch) | 14.0000 |
| Maximum RPM | 3100 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 9 |
| Coolant Through | No |
| Coating/Finish | Ni |
