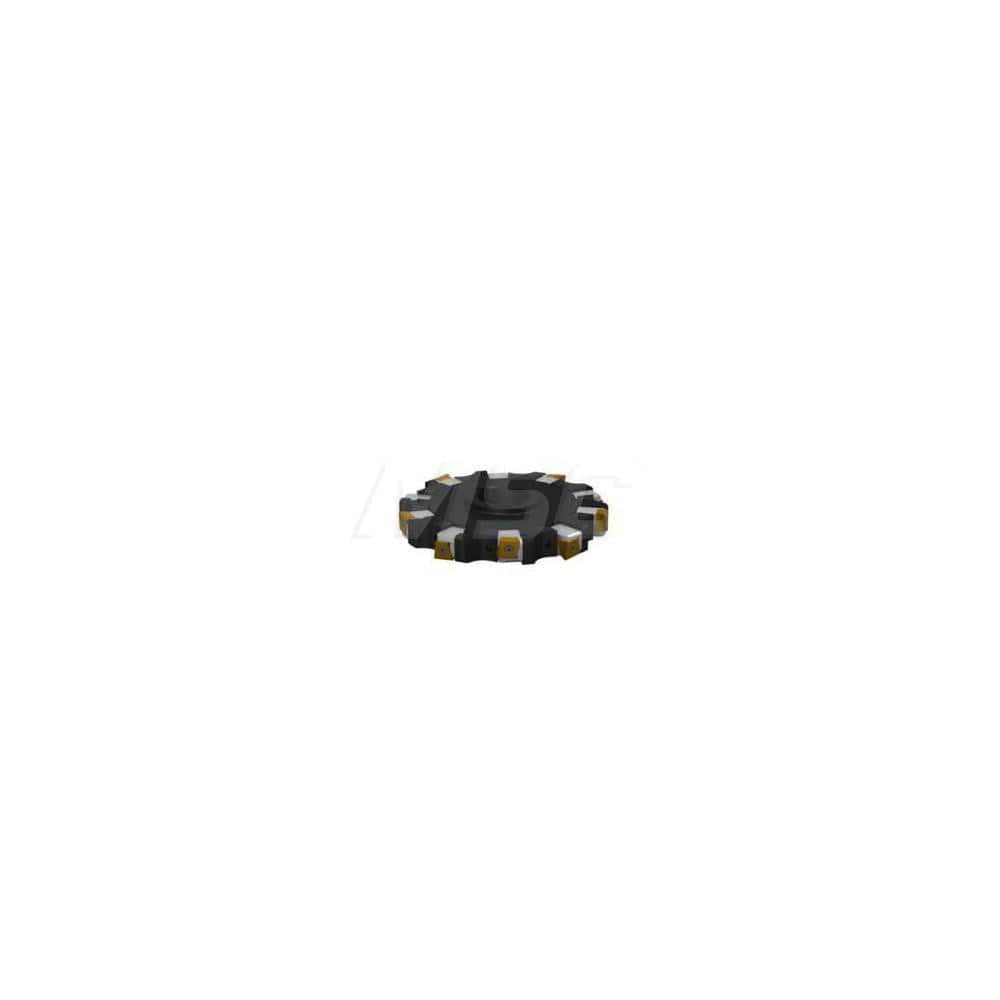

Indexable Slotting Cutter: 1.24'' Cutting Width, 8'' Cutter Dia, Arbor Hole Connection, 2.413'' Depth of Cut, 2'' Hole, Right Hand Cut Screw, Uses 12 XNHQ Inserts, 6 Teeth, Staggered, Positive, Steel, Ni Finish
Item #: 29453644
Brand: Seco
Model #: 02814648
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 1.2400 |
| Maximum Depth of Cut (Decimal Inch) | 2.4130 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 12 |
| Compatible Insert Style | XNHQ |
| Compatible Insert Size Code | 1407 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | 335.25 |
| Toolholder Style | 335.25 |
| Hub Diameter (Decimal Inch) | 3.0000 |
| Hub Diameter (mm) | 3.00 |
| Hub Diameter (Inch) | 3 |
| Keyway Width (mm) | 0.50 |
| Keyway Width (Decimal Inch) | 0.5000 |
| Maximum RPM | 3900 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 6 |
| Coolant Through | No |
| Coating/Finish | Ni |
