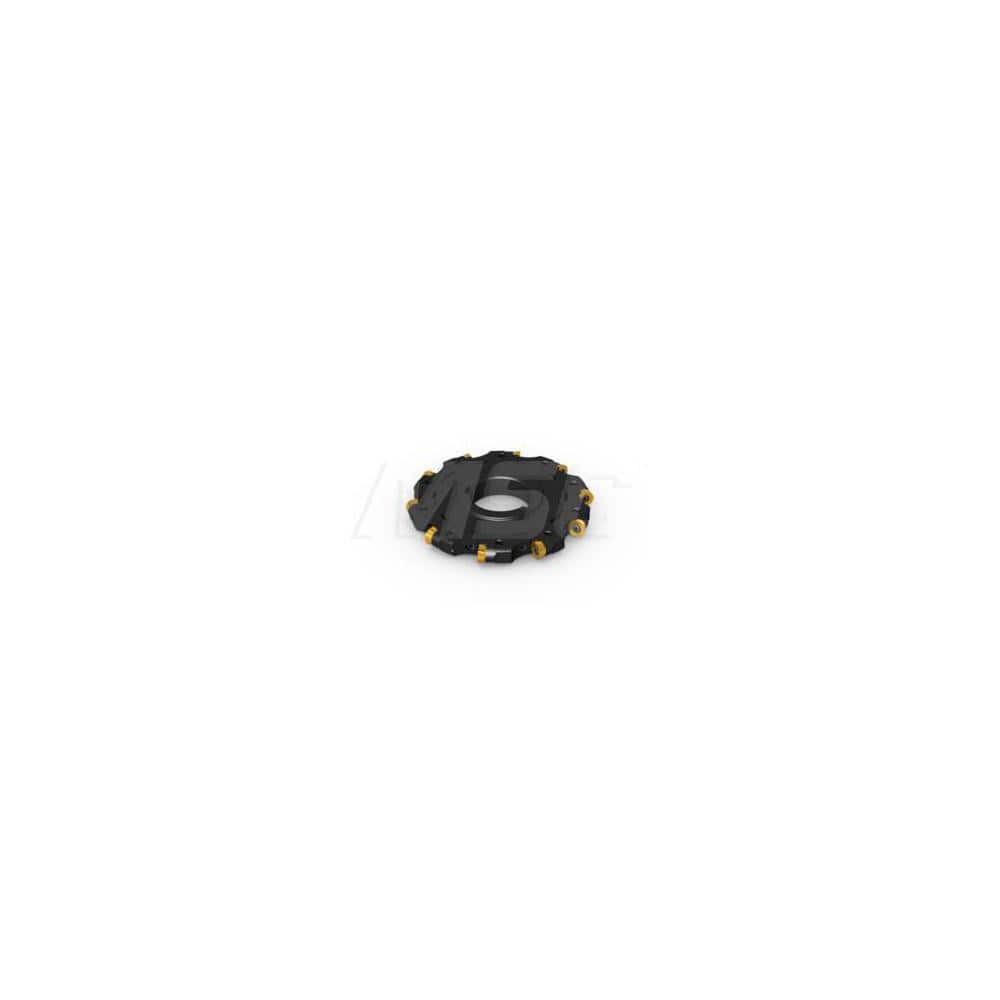

Indexable Slotting Cutter: 0.394'' Cutting Width, 4.79'' Cutter Dia, Arbor Hole Connection, 1.142'' Depth of Cut, 1'' Hole, Neutral Screw, Uses 8 RD Inserts, 4 Teeth, Staggered, Positive, Steel, Black Oxide Finish
Item #: 29453776
Brand: Seco
Model #: 02834707
Product Specifications
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.3940 |
| Maximum Depth of Cut (Decimal Inch) | 1.1420 |
| Hole Diameter (Inch) | 1 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Decimal Inch) | 4.7900 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 8 |
| Compatible Insert Style | RD |
| Compatible Insert Size Code | 0803 |
| Tooth Type | Staggered |
| Rake | Positive |
| Tool Material | Steel |
| Series | 335.18 |
| Toolholder Style | 335.18 |
| Hub Diameter (Decimal Inch) | 1.5510 |
| Hub Diameter (mm) | 1.55 |
| Keyway Width (mm) | 0.25 |
| Keyway Width (Decimal Inch) | 0.2500 |
| Maximum RPM | 9400 |
| Tool Application | Slotting; Shouldering; Back Facing |
| Tool Performance | High Performance |
| Number Of Teeth | 4 |
| Coolant Through | No |
| Coating/Finish | Black Oxide |
