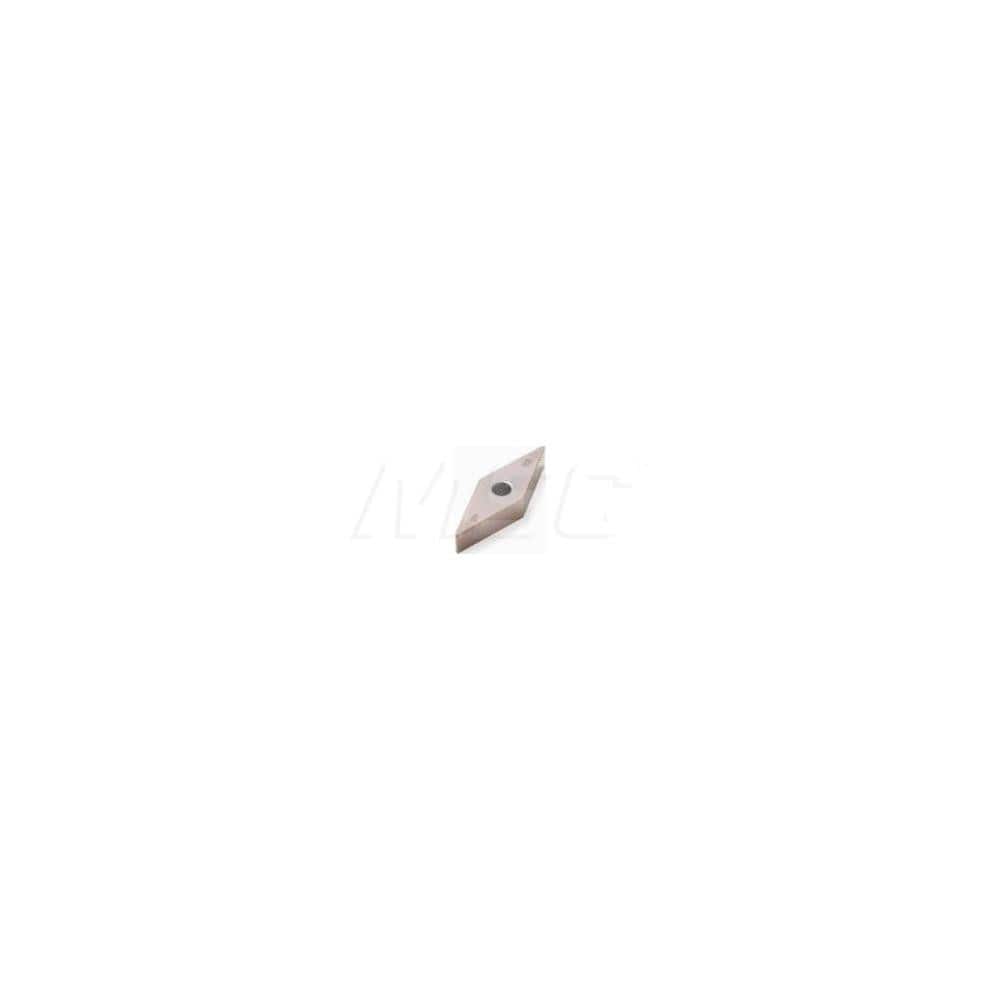

Turning Insert: VNGA331S-00625-L1-B, Cubic Boron Nitride TiSiN Finish, Neutral, 0.6300″ Long, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 35.0 ° N/A Diamond, Series VNGA
Item #: 29455847
Brand: Seco
Model #: 03029614
Product Specifications
| Insert Style | VNGA |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | CH2540 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp; Lever Lock |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | VNGA |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6300 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | VNGA331S00625L1B |
| Iso Code | VNGA160404S-01525-L1-B |
| Chip Breaker | 0 |
| Coating/Finish | TiSiN |
