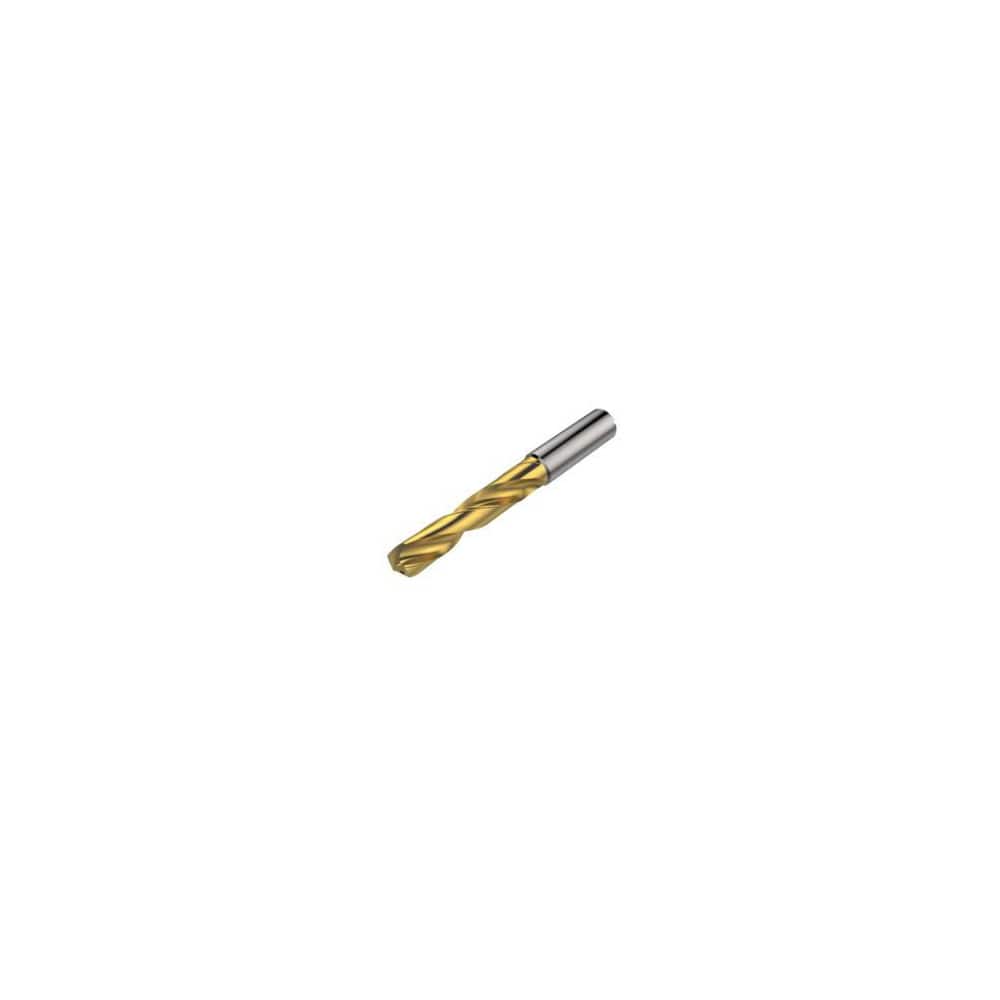

Jobber Length Drill Bit: 0.5″ Dia, 140 °, Solid Carbide TiAlN, TiN Finish, 4.88″ OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SD205A
Item #: 29455854
Brand: Seco
Model #: 02450074
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5000 |
| Drill Bit Size (Inch) | 1/2 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Flute |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.5510 |
| Overall Length (Decimal Inch) | 4.8800 |
| Flute Length (Decimal Inch) | 3.0310 |
| Series | SD205A |
| Tool Application | Drilling |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 2.2050 |
| Shank Length (Decimal Inch) | 1.7720 |
| Drill Point Length (Decimal Inch) | 0.0910 |
| Tool Performance | High Performance |
