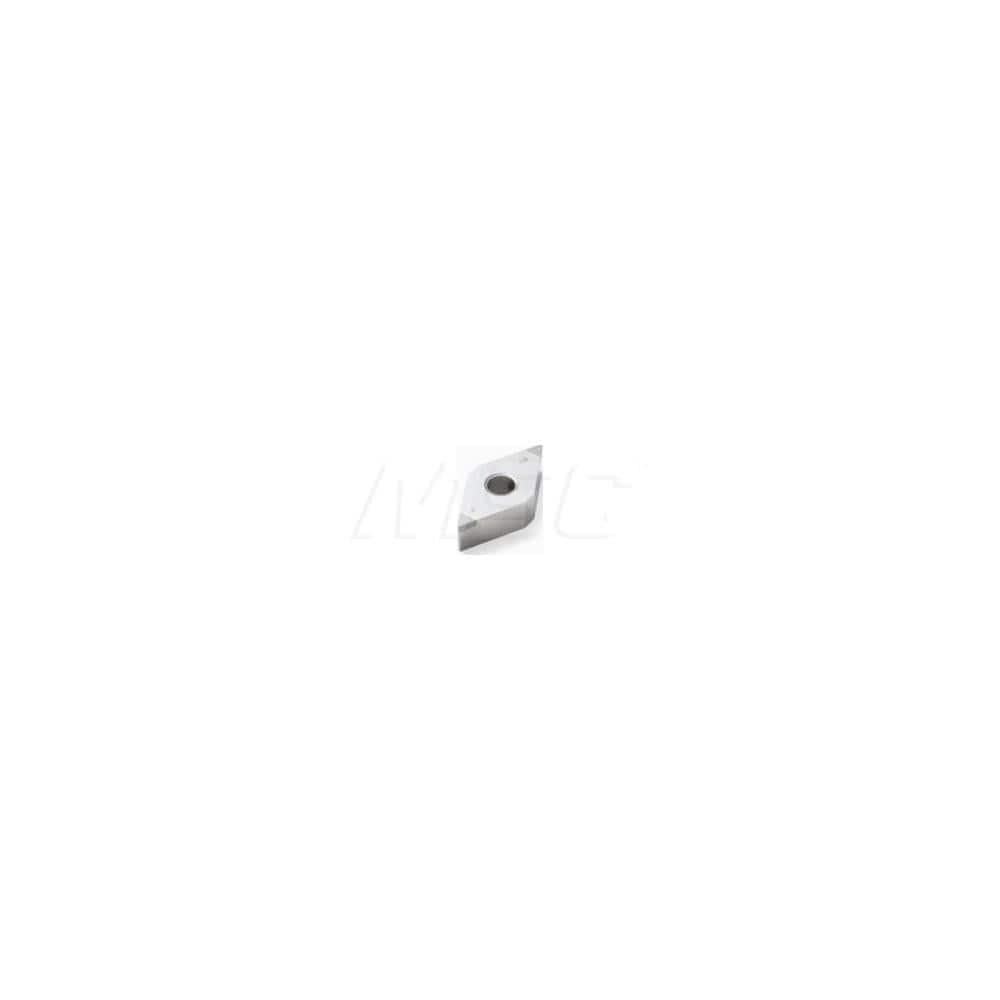

Turning Insert: DNGA442S00420L1WZ93B, Cubic Boron Nitride Uncoated Finish, Neutral, 0.5000″ Long, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 55.0 ° N/A Diamond, Series DNGA
Item #: 29455912
Brand: Seco
Model #: 02843144
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 442 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | CBN010 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.1340 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp; Lever Lock |
| Width (Inch) | 1 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | DNGA |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Inch) | 1/2 |
| Insert Length (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Super-alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Ansi Code | DNGA442S00420L1WZ93B |
| Iso Code | DNGA150608S01020L1WZ93B |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | Uncoated |
 | |
| MSC Part # | 29455912 |
| Mfr Part # | 02843144 |
| Country of OriginCountry of Origin is subject to change | Sweden |
