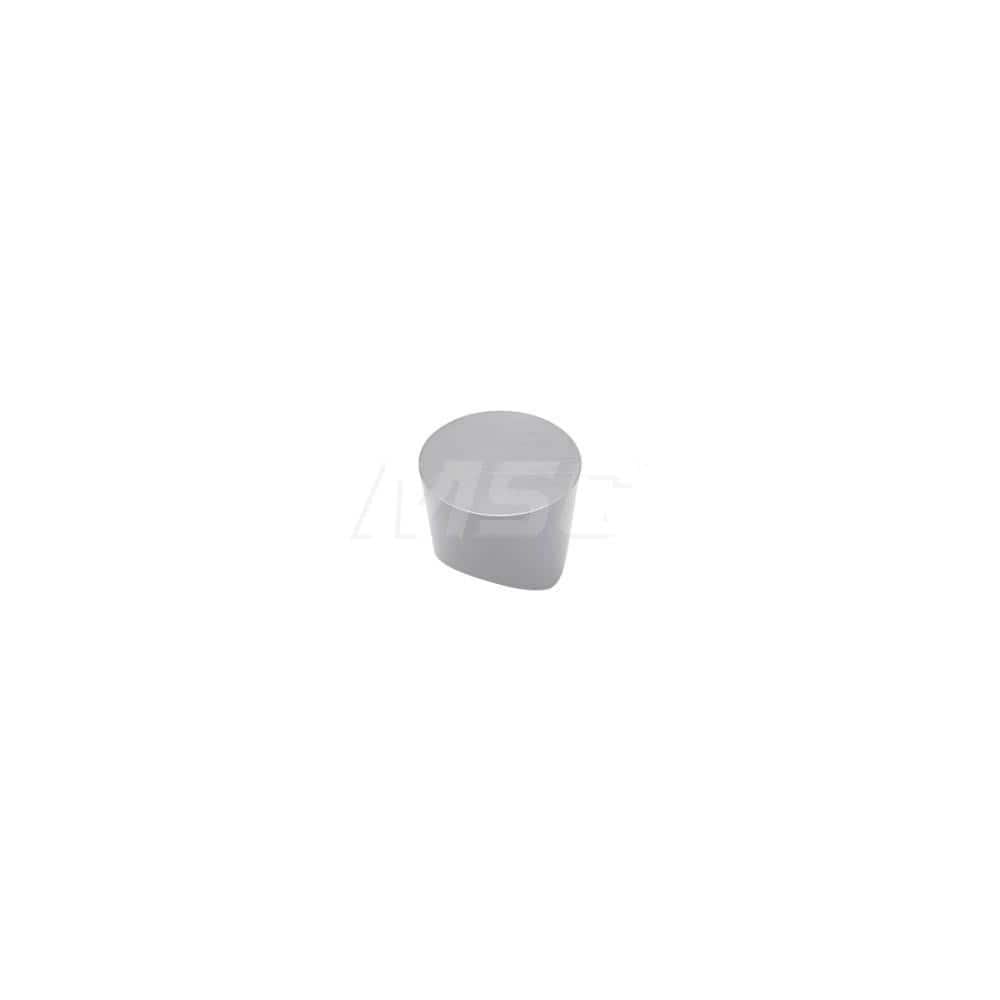

Turning Insert: RCGX450T-00420 CW100, Ceramic Uncoated Finish, Neutral, 0.5000″ Long, 1/2″ Inscribed Circle, 0.2500″ Corner Radius, 0.0 ° N/A Round, Series RCGX
Item #: 29456043
Brand: Seco
Model #: 02936230
Product Specifications
| Insert Style | RCGX |
| Insert Shape Code | R |
| Insert Size Code | 450T00420 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Ceramic |
| Manufacturer Grade | CW100 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.3130 |
| Corner Radius (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Included Angle | 0.0 |
| Relief Angle | 7 |
| Series | RCGX |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Inch) | 1/2 |
| Insert Length (Decimal Inch) | 0.5000 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | RCGX450T00420 |
| Iso Code | RCGX120700T-01020 |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | Uncoated |
