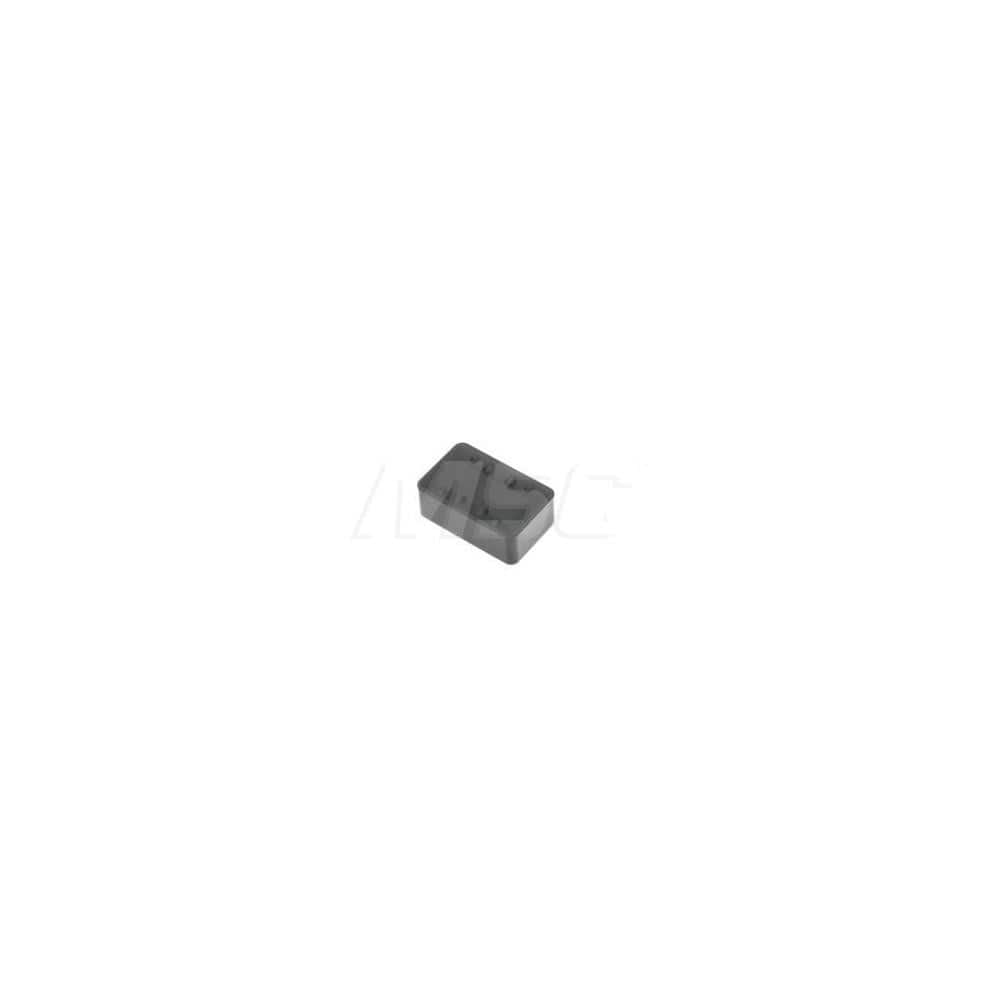

Turning Insert: LNMX401432-RR96 TP2501, Solid Carbide TiCN, Al2O3 & Cr Finish, Neutral, 1.5750″ Long, 0.1260″ Corner Radius, 90.0 ° N/A Rectangle, Series LNMX
Item #: 29456142
Brand: Seco
Model #: 02960803
Product Specifications
| Insert Style | LNMX |
| Insert Shape Code | L |
| Insert Size Code | 401432 |
| Insert Shape | Rectangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TP2501 |
| Hole Diameter (Decimal Inch) | 0.3660 |
| Maximum Depth of Cut (Decimal Inch) | 1.4490 |
| Inscribed Circle (Decimal Inch) | 0.9920 |
| Insert Holding Method | Screw |
| Width (Inch) | 1 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.5510 |
| Corner Radius (Decimal Inch) | 0.1260 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | LNMX |
| Coating Process | Duratomic |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 1.5750 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Ansi Code | LNMX401432RR96 |
| Iso Code | LNMX401432-RR96 |
| Chip Breaker | RR96 |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | TiCN; Al2O3; Cr |
