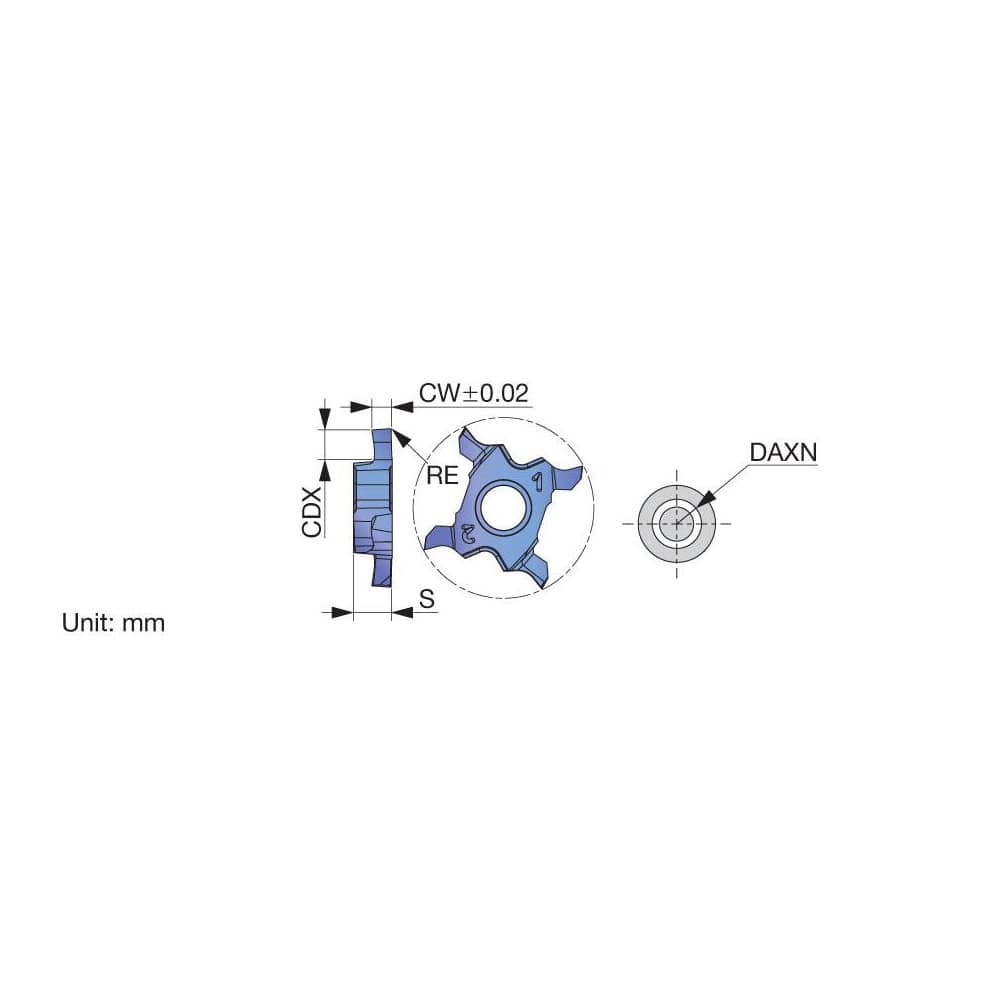

Grooving Insert: TCFYes SH725, Solid Carbide TiAlN Finish, Left Hand, 0.02″ Cutting Width, Series TCF
Item #: 29629599
Brand: Tungaloy
Model #: 6795079
Product Specifications
| Insert Style | TCF |
| Insert Size Code | 50 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | SH725 |
| Cutting Width (Decimal Inch) | 0.0200 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0020 |
| Lead Angle | 0 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving; Facing |
| Series | TCF |
| Coating Process | PVD |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | TCF18L050F-005 SH725 |
| Iso Code | TCF18L050F-005 SH725 |
| Chip Breaker | Yes |
| Coating/Finish | TiAlN |
