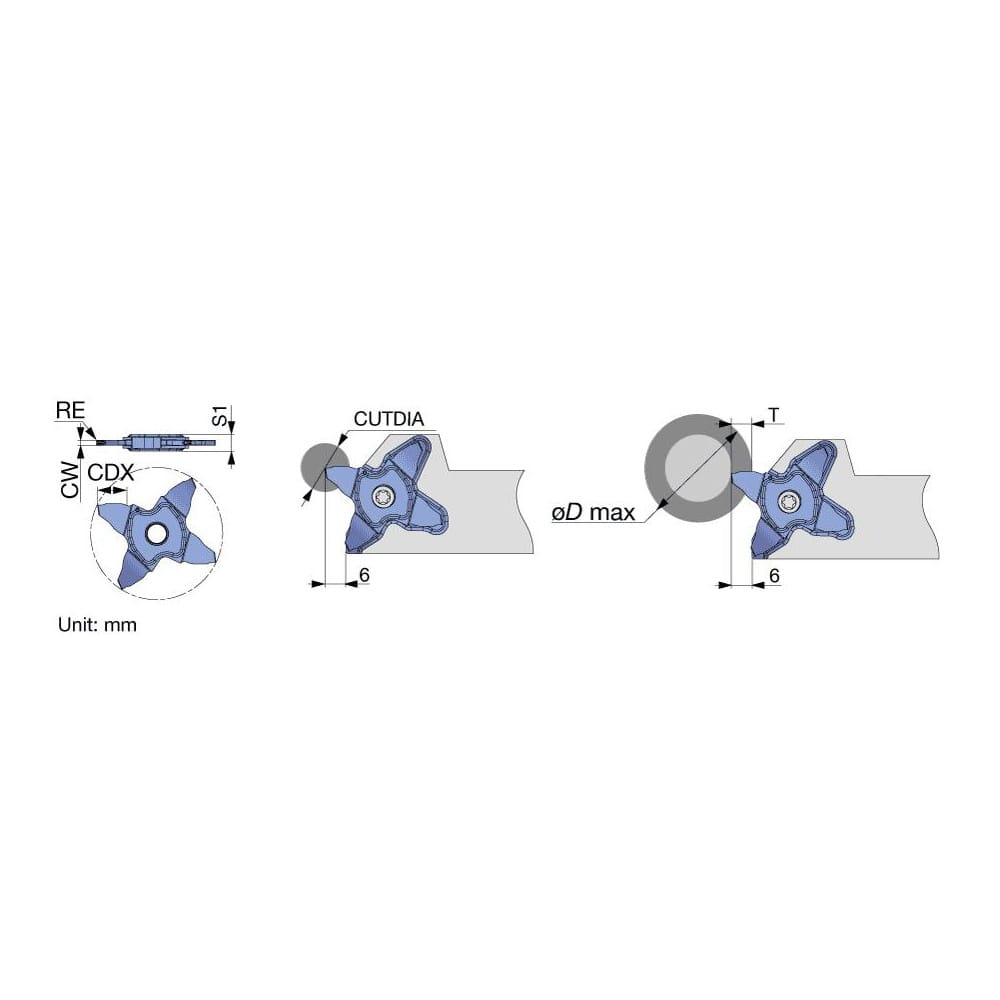

Grooving Insert: TCLYes AH7025, Solid Carbide TiAlN Finish, Neutral, 0.157″ Cutting Width, Series TCL
Item #: 29629730
Brand: Tungaloy
Model #: 6784959
Product Specifications
| Insert Style | TCL |
| Insert Size Code | 400 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH7025 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0118 |
| Lead Angle | 0 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Cut-Off |
| Series | TCL |
| Coating Process | PVD |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | TCL38-400-030 AH7025 |
| Iso Code | TCL38-400-030 AH7025 |
| Chip Breaker | Yes |
| Coating/Finish | TiAlN |
