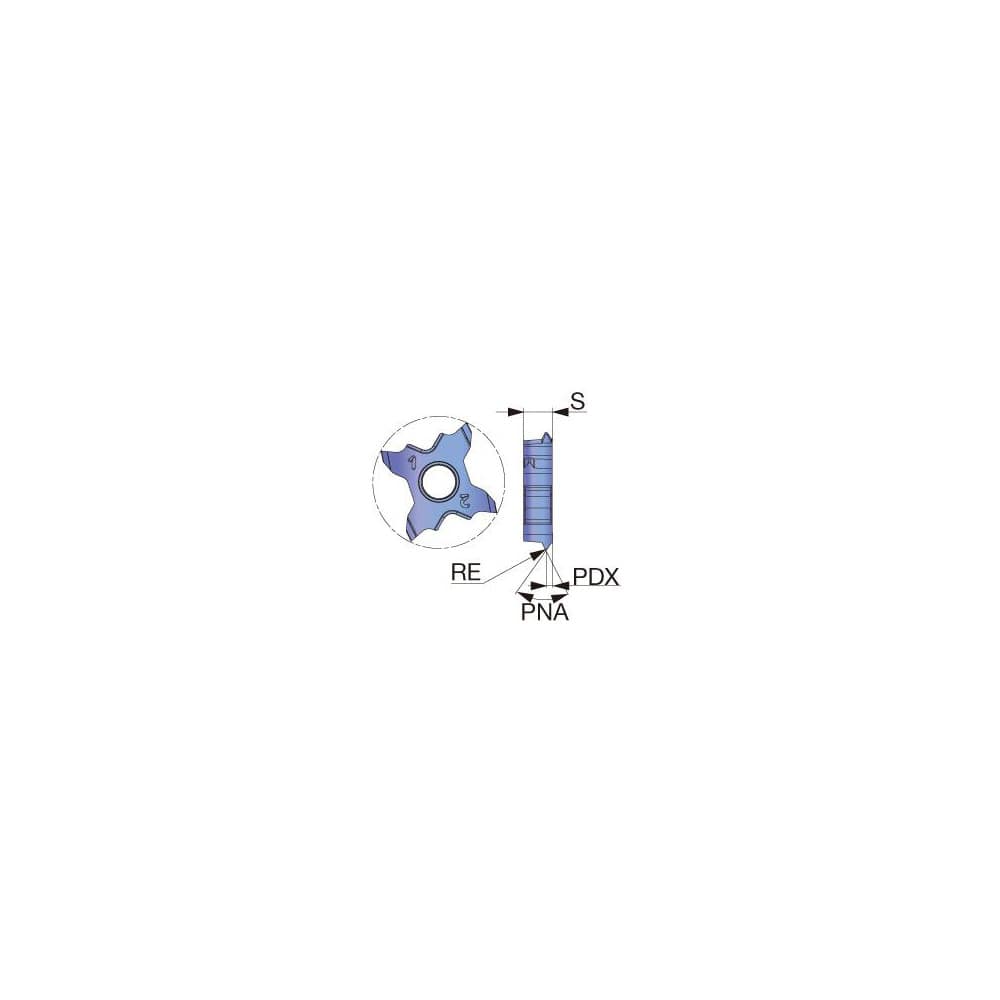

Grooving Insert: TCT SH725, Solid Carbide TiAlN Finish, Right Hand, 0.5 mm Cutting Width, 0.5 mm Max Depth, Series TCT
Item #: 29629896
Brand: Tungaloy
Model #: 6759097
Product Specifications
| Insert Style | TCT |
| Insert Size Code | 075 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | SH725 |
| Cutting Width (mm) | 0.50 |
| Maximum Depth of Cut (mm) | 0.50 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0035 |
| Lead Angle | 60 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Series | TCT |
| Coating Process | PVD |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | TCT18FR-075ISO SH725 |
| Iso Code | TCT18FR-075ISO SH725 |
| Coating/Finish | TiAlN |
