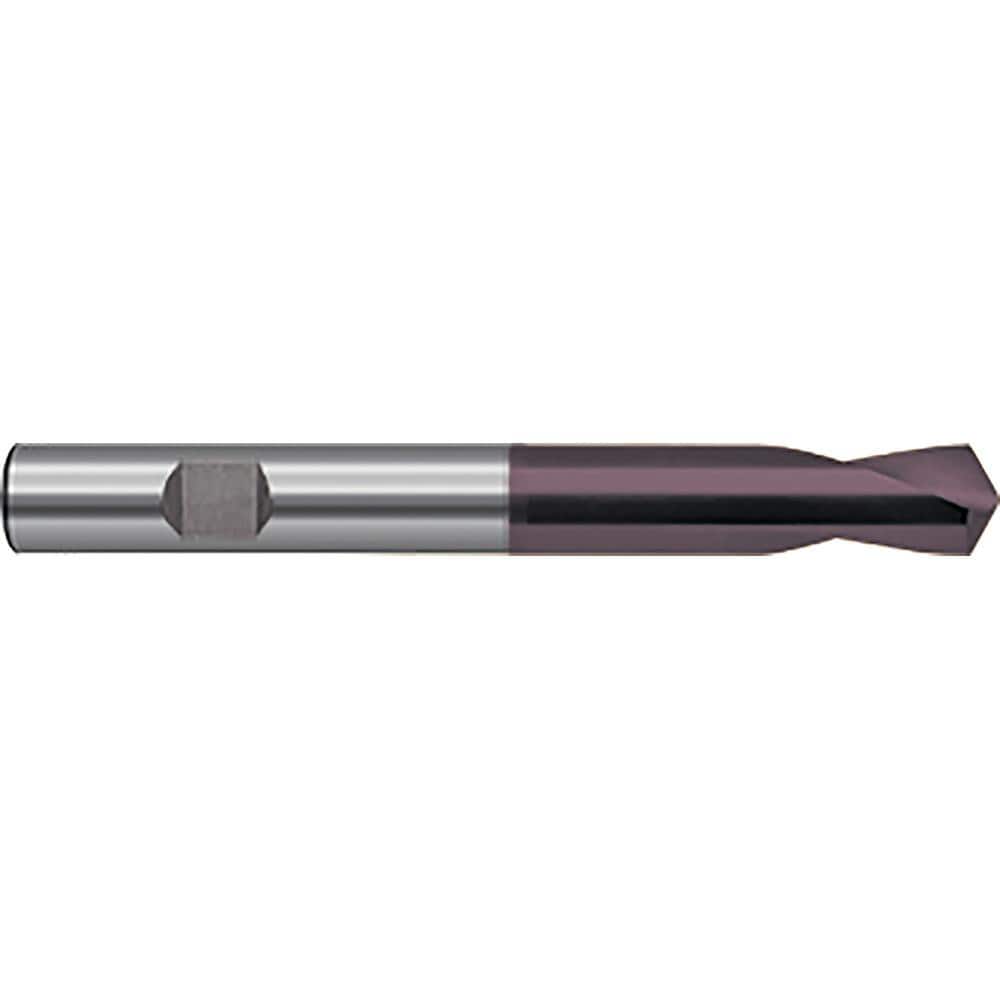

Spotting Drill: 120°, Solid Carbide Nano-FIREX Finish, Right Hand Cut, Series 6028
Item #: 29632684
Brand: Guhring
Model #: 9060280063500
Product Specifications
| Drill Point Angle | 120 |
| Cutting Diameter (Inch) | 1/4 |
| Cutting Diameter (mm) | 6.35 |
| Cutting Diameter (Decimal Inch) | 0.2500 |
| Overall Length (mm) | 70 |
| Tool Material | Solid Carbide |
| Coating/Finish | Nano-FIREX |
| Single/Double Ended | Single |
| Series | 6028 |
| Overall Length (Decimal Inch) | 2.7560 |
| Flute Length (Decimal Inch) | 0.6690 |
| Flute Length (mm) | 17.00 |
| Shank Diameter (Decimal Inch) | 0.25 |
| Shank Diameter (mm) | 6.3500 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
