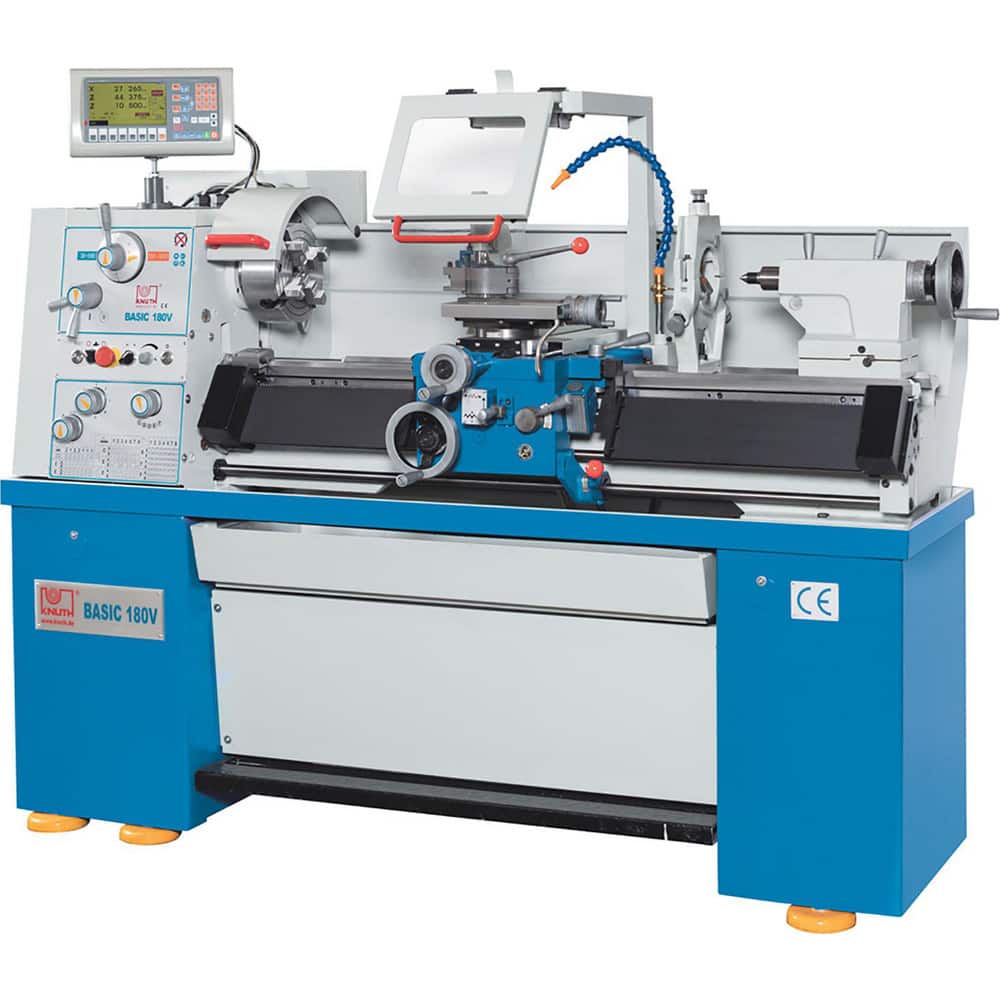

Bench, Engine & Toolroom Lathes; Horse Power: 5; Phase: 3; Spindle Speed Control: Variable; Frequency; Bed Width: 8 in; Distance Between Centers: 39.37 in; Cross Slide Travel: 7 in; Gap Length: 8 in; Swing: 14 in; Spindle Bore Diameter: 1 in; Minimum Spin

Bench, Engine & Toolroom Lathes; Horse Power: 5; Phase: 3; Spindle Speed Control: Variable; Frequency; Bed Width: 8 in; Distance Between Centers: 39.37 in; Cross Slide Travel: 7 in; Gap Length: 8 in; Swing: 14 in; Spindle Bore Diameter: 1 in; Minimum Spin


Item #: 29771250
Brand: Knuth
Model #: 300807

Product Specifications

Horse Power 5
Phase 3
Spindle Speed Control Variable; Frequency
Bed Width 8 in
Distance Between Centers 39.37 in
Cross Slide Travel 7 in
Gap Length 8 in
Swing 14 in
Spindle Bore Diameter 1 in
Minimum Spindle Speed 30
Spindle Nose Designation D1-4
Maximum Spindle Speed 3000 RPM
Overall Height 48 in
Overall Depth 32 in
Number of Inch Threads 28
Minimum Metric Pitch 0.02
Maximum Metric Pitch 0.3
Number of Metric Threads 37
Spindle Taper Size Morse taper 5
Tailstock Taper Size Morse Taper 3
Compound Travel 4
Minimum Threads Per Inch 4
Tailstock Travel 0.5 in
Maximum Threads Per Inch 56
Minimum Longitudinal Feed Per Revolution 0.00169
Maximum Longitudinal Feed Per Revolution 0.00811
Minimum Cross Feed Rate Per Revolution 0.00169
Maximum Cross Feed Rate Per Revolution 0.02571
Swing Over Cross Slide 9
Swing Over Gap 20
Number Of Spindle Speeds 2
$ 19,550.40
