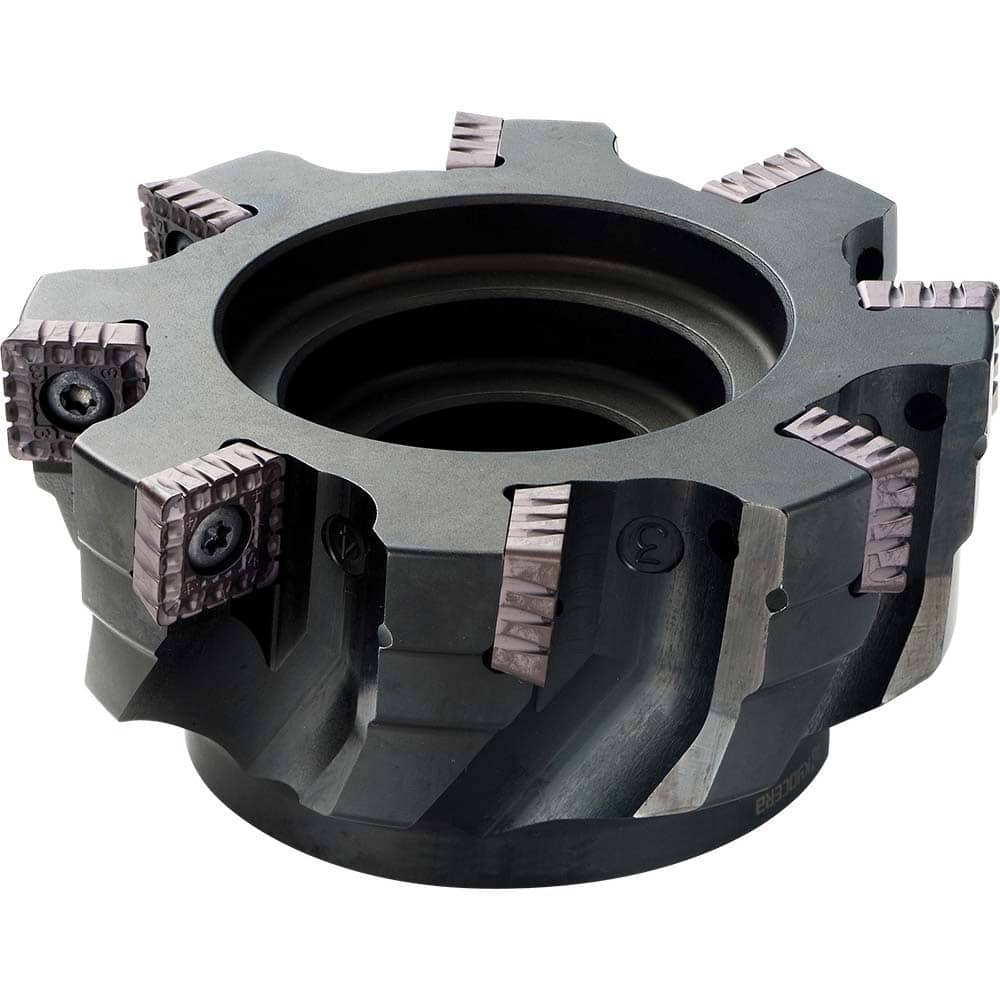

Kyocera - Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 3 ; Cutting Diameter (Decimal Inch): 3.0000 ; Arbor Hole Diameter (Inch): 1 ; Lead Angle: 90 ; Overall Height (mm): 60.00000 ; Insert Compatibility: SPMT1806EN?
Item #: 30039333
Brand: Kyocera
Model #: 8834815
Product Specifications
Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 3 ; Cutting Diameter (Decimal Inch): 3.0000 ; Arbor Hole Diameter (Inch): 1 ; Lead Angle: 90 ; Overall Height (mm): 60.00000 ; Insert Compatibility: SPMT1806EN?
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 90 |
| Overall Height (mm) | 60.00000 |
| Insert Compatibility | SPMT1806EN? |
| Series | MSRS |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.6496 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | MSRS |
| Number of Flutes | 4 |
| Keyway Width (mm) | 9.6800 |
| Keyway Depth (mm) | 6.00 |
| Pitch | Standard |
| ISO Number | MSRS903000R14T |
| Counterbore Diameter (Decimal Inch) | 0.8661 |
| Toolholder Material | Steel |
