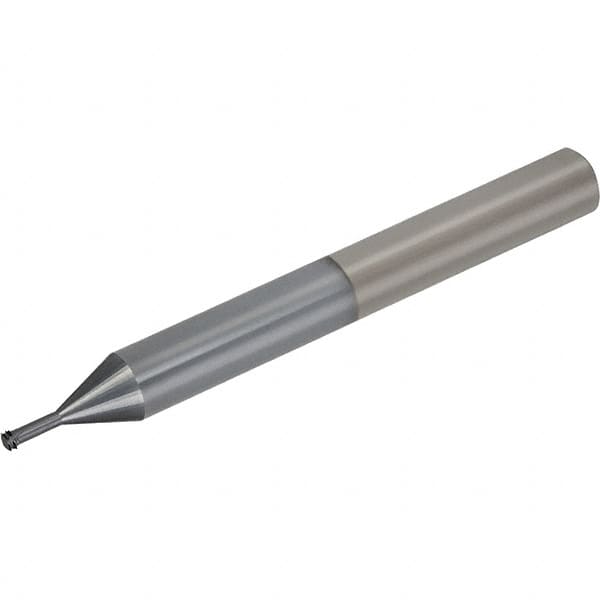

Vargus - M8x1.25 Thread, 5/16" Shank Diam, TiCN Coating, Solid Carbide Straight Flute Thread Mill - 5 Flutes, 3.15" OAL, M8 Min Noml Diamter
Item #: 30051502
Brand: Vargus
Model #: 80926
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear-resistant than TiN. It is commonly used on stainless steels, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Pitch (mm) | 1.25 |
| Thread Size (mm) | M8x1.25 |
| Minimum Nominal Diameter (mm) | M8 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Shank Diameter (Inch) | 5/16 |
| Number of Flutes | 5 |
| Cutting Diameter (Decimal Inch) | 0.2560 |
| Finish/Coating | TiCN |
| Length of Cut (Decimal Inch) | 4.9000 |
| Thread Standard | ISO |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.1500 |
| Through Coolant | No |
| Material Grade | Micrograin |
