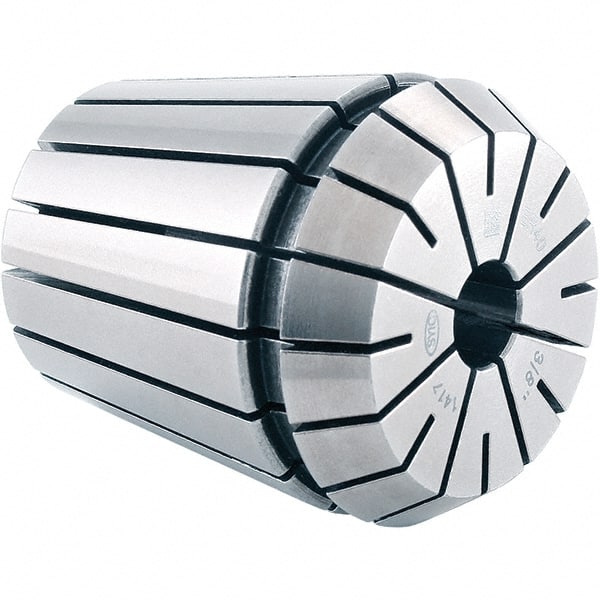

Techniks - 0.461 to 0.5" ER50 Collet - 0.0002" TIR, 2.36" OAL, 2.05" Overall Diam
Item #: 30059372
Brand: Techniks
Model #: 04250-1/2
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER50 |
| Size Range (Decimal Inch) | 0.461-0.5 |
| Size (Inch) | 1/2 |
| TIR (Decimal Inch) | 0.000200 |
| Overall Length (Decimal Inch) | 2.36 |
| Overall Diameter (Decimal Inch) | 2.0500 |
| Collet System | ER |
| Number of Pieces | 1 |
| PSC Code | 5136 |
