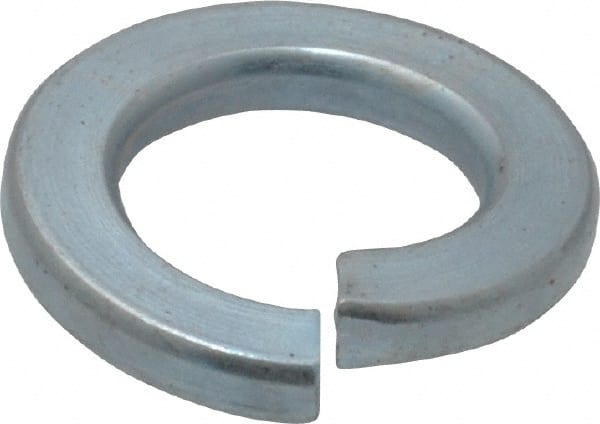

Value Collection - M10, 10.2mm ID, 18.1mm OD, 2.2mm Thick Split Lock Washer - Grade 8 Spring Steel, Zinc-Plated Finish, 10.2mm Min ID, 10.7mm Max ID
Item #: 30125694
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Type | Split Lock Washer |
| Screw Size | M10 |
| Material | Spring Steel |
| Material Grade | Grade 8 |
| Finish/Coating | Zinc-Plated |
| Inside Diameter (mm) | 10.20 |
| Outside Diameter (mm) | 18.10 |
| Thickness (mm) | 2.20 |
| Minimum Inside Diameter (mm) | 10.20 |
| Maximum Inside Diameter (mm) | 10.70 |
| Minimum Outside Diameter (mm) | 18.10 |
| Maximum Outside Diameter (mm) | 18.10 |
| Military Specification | Does Not Meet Military Specifications |
| Maximum Thickness (mm) | 2.20 |
| Hardness | Rockwell C44-C51 |
| Fastener Standard | DIN 127 |
