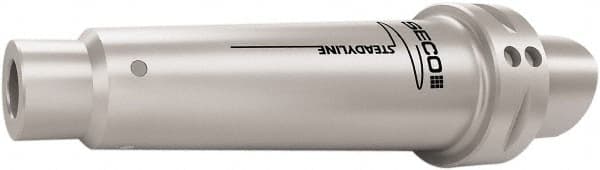

Seco - Seco-Capto 23mm Taper Shank Milling Tip Insert Holder & Shank - 7.283465" Projection, 0.96" Neck Diam, M12 Neck Thread, 23mm Nose Diam, 223mm OAL, Alloy Steel Tool Holder
Item #: 30140511
Brand: Seco
Model #: 92201
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Series | Seco-Capto |
| Shank Type | Taper Shank |
| Shank Diameter (mm) | 23.00 |
| Projection (mm) | 185.00 |
| Projection (Inch) | 7.2835 |
| Projection (Decimal Inch) | 7.2835 |
| Neck Diameter (Decimal Inch) | 0.9060 |
| Neck Thread Size | M12 |
| Nose Diameter (mm) | 23.00 |
| Nose Diameter (Decimal Inch) | 0.9060 |
| Toolholder Material | Alloy Steel |
| Overall Length (mm) | 223.00 |
| Overall Length (Decimal Inch) | 8.7795 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
