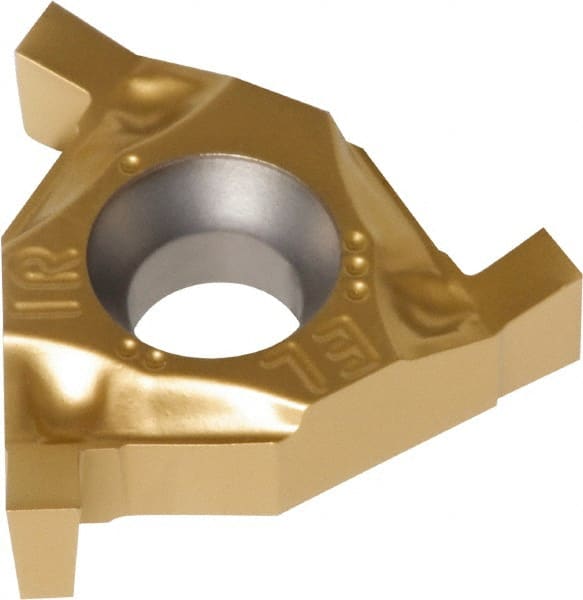

Iscar - 16EL/IR170GTGA Grade IC528, 1.7mm Cutting Width Carbide Grooving Insert - 2mm Max Depth of Cut, Neutral, 0.1mm Corner Radius, TiCN/TiN Finish
Item #: 30141063
Brand: Iscar
Model #: 6411115
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GTGA |
| Insert Size | 16EL/IR170 |
| Material | Carbide |
| Cutting Width (mm) | 1.70 |
| Cutting Width (Decimal Inch) | 0.0669 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Neutral |
| Multi-Use Tool | Yes |
| Multi-Use Application | External & Internal Machining |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Coating Process | PVD |
| Manufacturers Catalog Number | GTGA 16EL/IR 170 |
| Overall Width (mm) | 3.48 |
| Overall Width (Decimal Inch) | 0.1370 |
