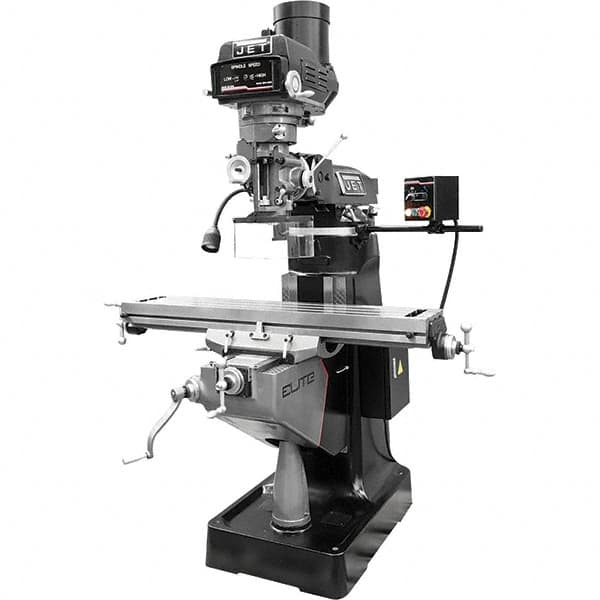

Jet - 9" Table Width x 49" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp - Exact Tooling

Jet - 9" Table Width x 49" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp


Item #: 30167977
Brand: Jet
Model #: 894106
Exact Tooling IR#: 04

Features and Benefits

Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
Product Specifications
Spindle Speed Control Variable Speed Pulley
Table Length (Inch) 49
Table Width (Inch) 9
Phase 3
Longitudinal Travel (Decimal Inch) 36.0000
Cross Travel (Decimal Inch) 16.0000
Knee Travel (Decimal Inch) 14.0000
Number of Spindle Speeds Variable
Maximum Spindle Speed (RPM) 4500.00
Minimum Spindle Speed (RPM) 60.00
Includes ETM-949 Mill with X, Y-Axis JET Powerfeeds and KURT Powered Draw Bar
Spindle Travel Length (Decimal Inch) 5.0000
Spindle Taper Size R8
Quill Diameter (Decimal Inch) 3.3750
Minimum Spindle to Table Distance (Decimal Inch) 18.7500
Maximum Spindle to Table Distance (Decimal Inch) 18.7500
Minimum Spindle to Column Distance (Decimal Inch) 21.4000
Maximum Spindle To Column Distance (Decimal Inch) 21.4000
Table Load Capacity (Lb.) 550.00
Number of T-Slots 3
Left-Hand Head Tilt (Degrees) 45.00
Right-Hand Head Tilt (Degrees) 90.00
Ram Travel Length (Inch) 14
Horsepower (HP) 3.00
Voltage 230
Overall Length (Decimal Inch) 68.0000
Overall Height (Inch) 84
Overall Depth (Inch) 63
Certification CSA/UL
Warranty Mfr's 3 Year Warranty
