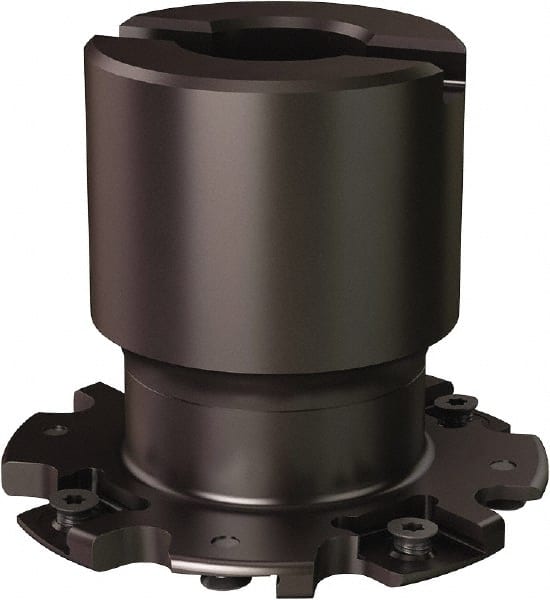

Seco - Shell Mount Connection, 0.5551" Cutting Width, 0.555" Depth of Cut, 2-1/2" Cutter Diam, 3/4" Hole Diam, 8 Tooth Indexable Slotting Cutter - R335.19 Toolholder, 335.19-1103 Insert
Item #: 30207740
Brand: Seco
Model #: 84173
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 14.10 |
| Cutting Width (Decimal Inch) | 0.5551 |
| Maximum Depth of Cut (mm) | 0.02 |
| Maximum Depth of Cut (Decimal Inch) | 0.5550 |
| Cutter Diameter (mm) | 63.50 |
| Cutter Diameter (Decimal Inch) | 2.5000 |
| Cutter Diameter (Inch) | 2-1/2 |
| Hole Diameter (mm) | 19.05 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Number of Teeth | 8 |
| Toolholder Style | R335.19 |
| Series | R335.19 |
| Insert Style | 335.19-1103 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Maximum RPM | 14900 |
| Hub Diameter (mm) | 40.00 |
| Hub Diameter (Decimal Inch) | 1.5748 |
| Keyway Width (Inch) | 0.3228 |
| Keyway Width (Decimal Inch) | 0.3228 |
| Keyway Width (mm) | 8.20 |
| Radius | No |
| Rake | Negative |
