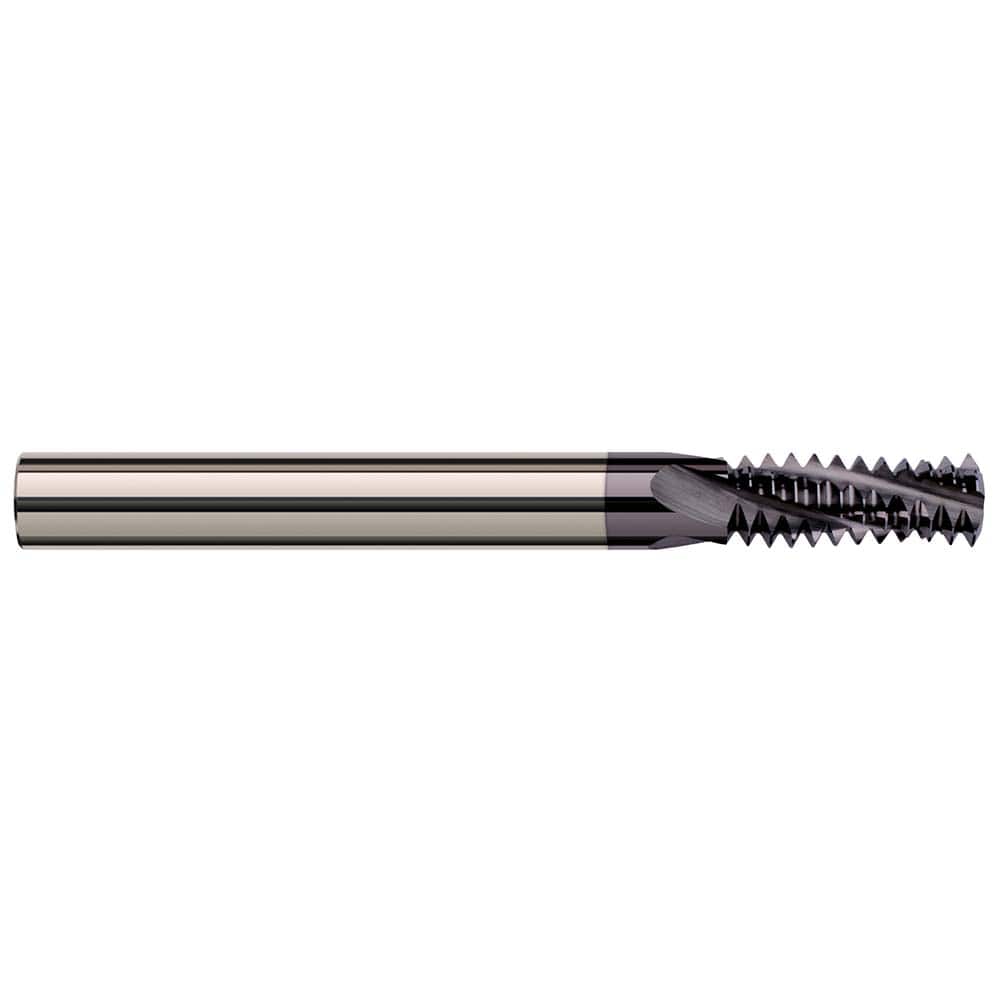

Harvey Tool - 8-36 Internal/External 36 TPI 1/8" Shank 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 30231906
Brand: Harvey Tool
Model #: 70031-C3
Product Specifications
| Threads Per Inch | 36 |
| Material | Solid Carbide |
| Thread Size (Inch) | 8-36 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 1/8 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.1150 |
| Length of Cut (Decimal Inch) | 0.2500 |
| Length of Cut (Inch) | 1/4 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | #8 |
| Minimum Nominal Diameter (Decimal Inch) | 0.1640 |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
